ICC Brake Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ICC brake switch harness connector.

Check continuity between ICC brake switch terminals 1 and 2 under the following conditions.

ICC BRAKE SWITCH TERMINALS CONTINUITY

Condition	Continuity
Brake pedal: Fully released.	Should exist.
Brake pedal: Slightly depressed.	Should not exist.

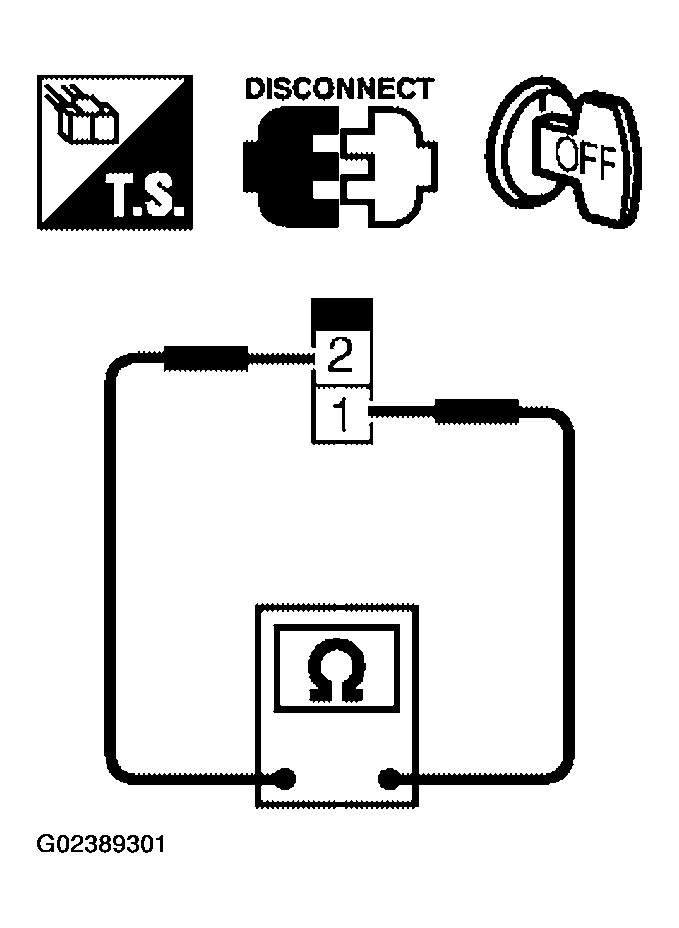

Fig 1: Checking Continuity Between ICC Brake Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ICC brake switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
