With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Start engine (VDC switch OFF).
Select "DATA MONITOR" mode with CONSULT-II.
Press MAIN switch and make sure that CRUISE indicator lights up.

Drive the vehicle for at least 5 consecutive seconds under the following condition.

VEHICLE SPEED SPECIFICATION

VHCL SPEED SE	More than 30 km/h (19 MPH)
Selector lever	Suitable position

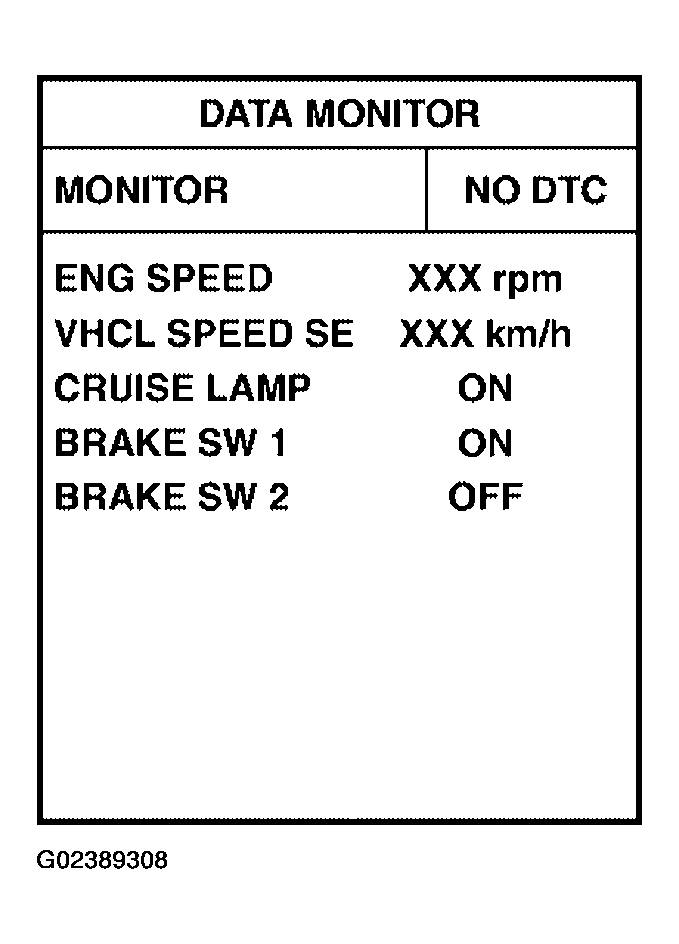

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

If DTC is detected, go to "DIAGNOSTIC PROCEDURE ". If DTC is not detected, go to the following step.

Drive the vehicle for at least 5 consecutive seconds under the following condition.

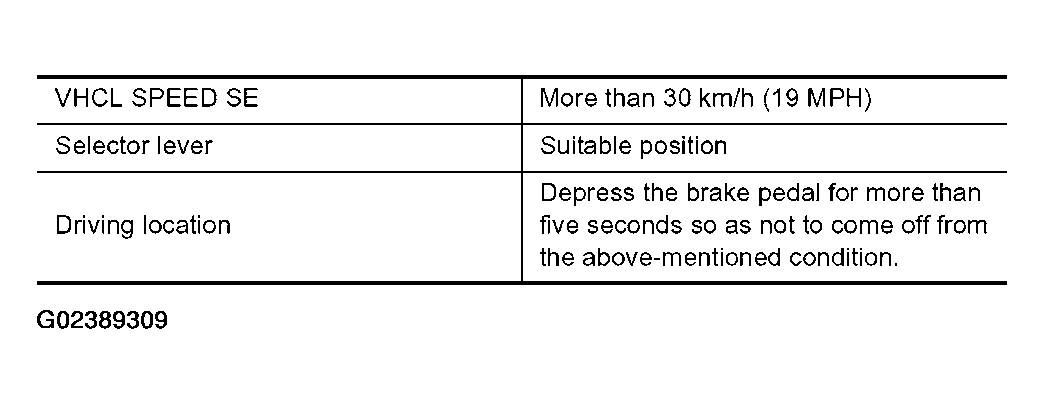

Fig 2: VEHICLE SPEED SPECIFICATION
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
