ICC Steering Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect combination switch (spiral cable) harness connector M102.
Check continuity between ICC steering switch terminals 1 and 2 with pushing each switch.

Fig 1: ICC Steering Switch Terminals Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

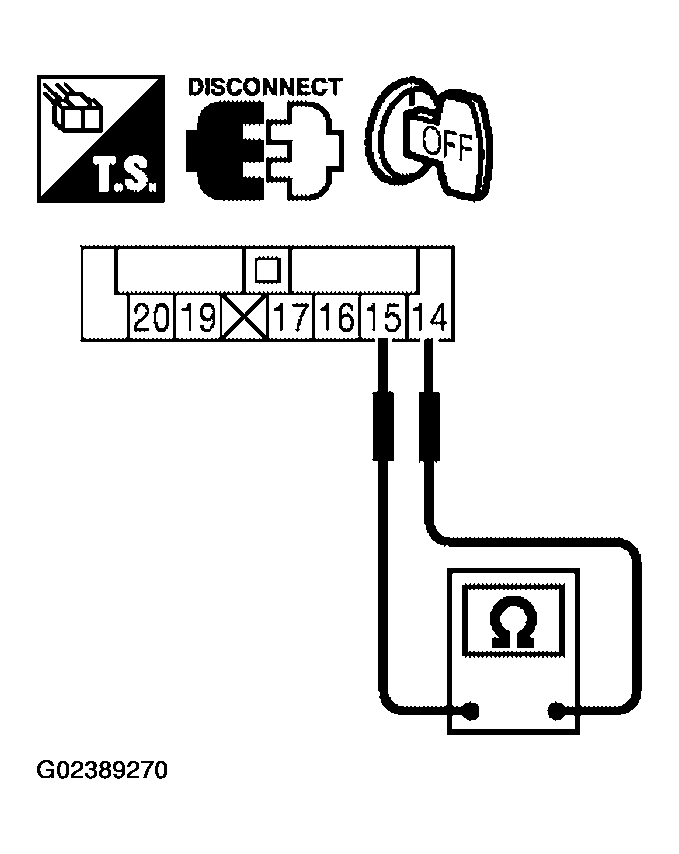

Fig 2: Checking Continuity Between ICC Steering Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ICC steering switch.
