With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

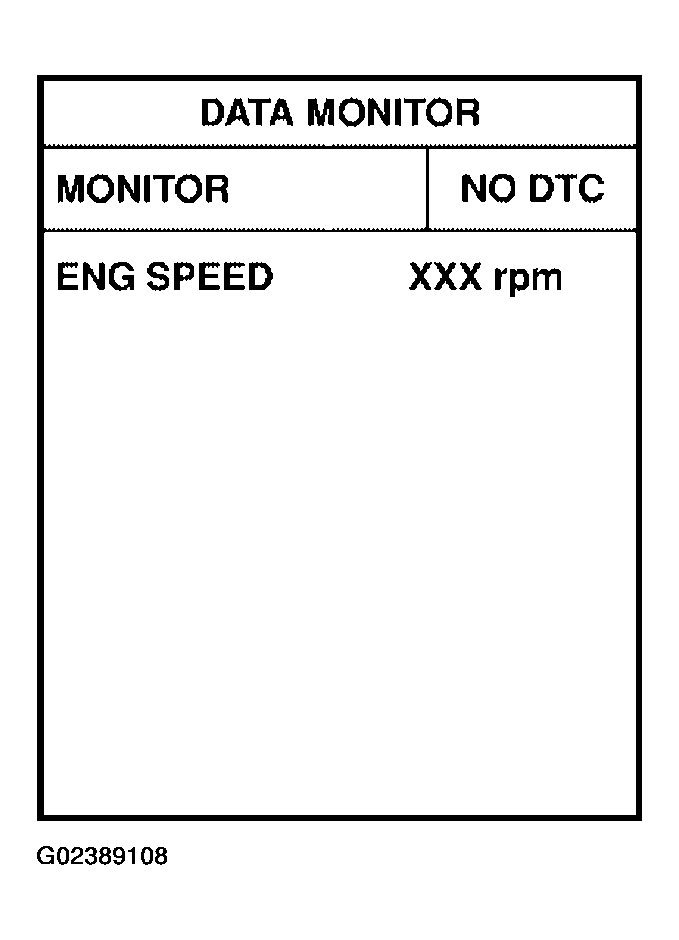

    Fig 1: DTC P1225 Selecting "DATA MONITOR" Mode With CONSULT-II
    G02389108Courtesy of NISSAN MOTOR CO., U.S.A.
