On Board Diagnosis Logic: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

These self-diagnoses have the one trip detection logic.

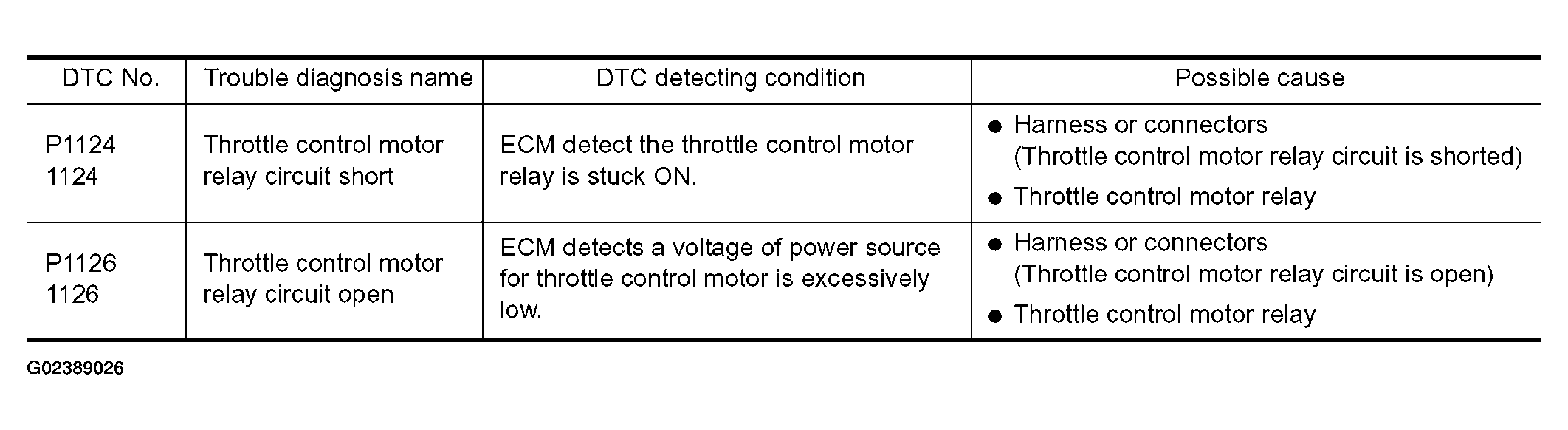

Fig 1: DTC P1124, P1126 Throttle Control Motor Relay - On Board Diagnosis Logic
G02389026Courtesy of NISSAN MOTOR CO., U.S.A.
