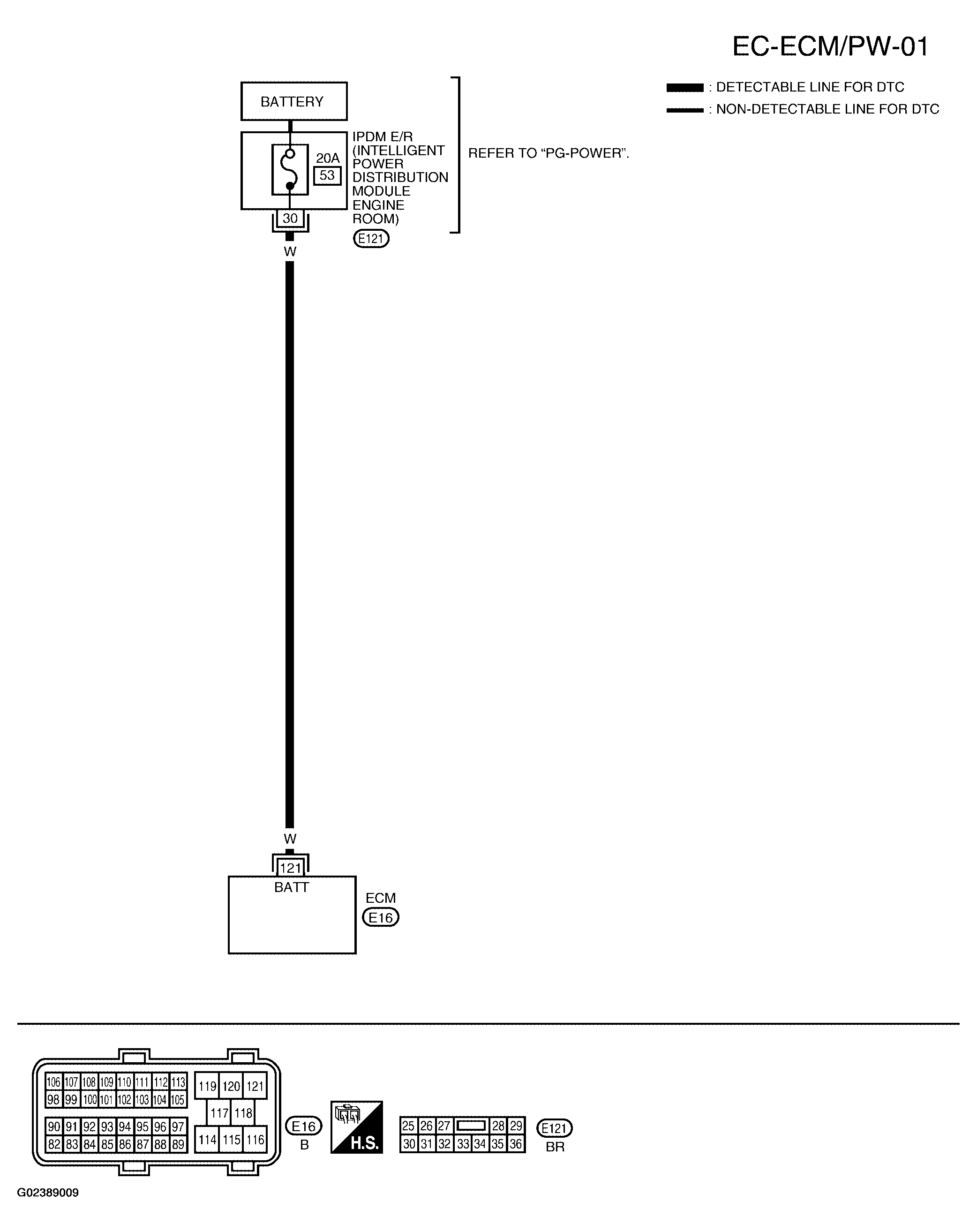

DTC P1065: ECM Power Supply: Wiring Diagram
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
DTC P1065 ECM POWER SUPPLY - SPECIFICATION DATA & REFERENCE VALUES
| TERMINAL WIRE NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 121 | W | Power supply for ECM (Back-up) | [ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) |
