With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Start engine (VDC switch OFF).
Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.
Warm engine up to normal operating temperature.

Maintain the following conditions for at least 60 consecutive seconds.

DIAGNOSTIC PROCEDURE CONDITION

ENG SPEED	More than 1,600 RPM
COOLAN TEMP/S	More than 70°C (158°F)
B/FUEL SCHDL	More than 6.9 msec
Selector lever	Except P or N position
PW/ST SIGNAL	OFF

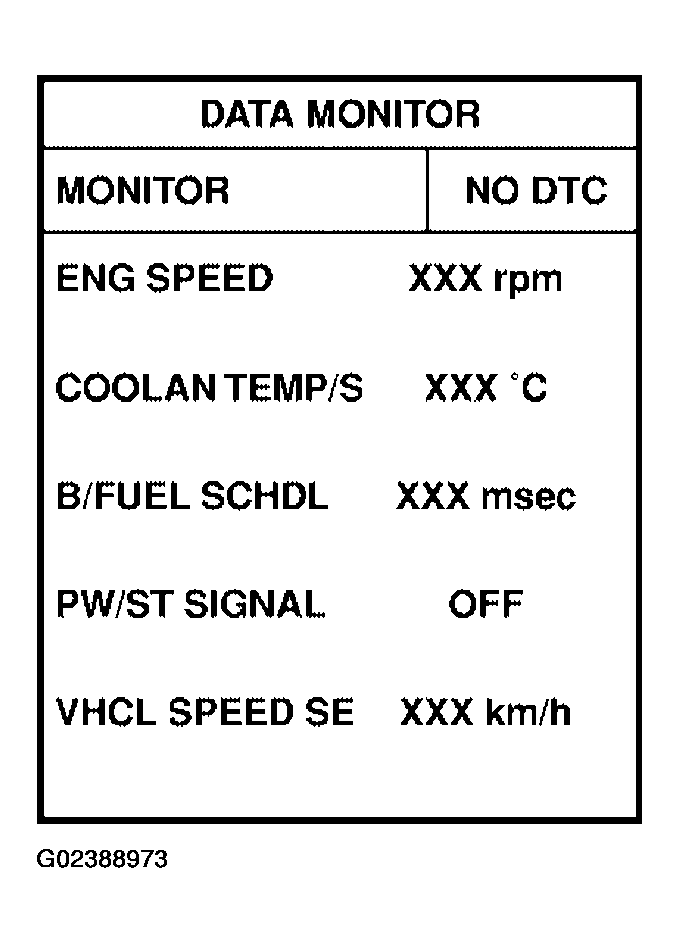

Fig 1: Selecting "DATA MONITOR" Mode With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
