With CONSULT-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
Reconnect harness connectors disconnected.
Turn ignition switch ON.

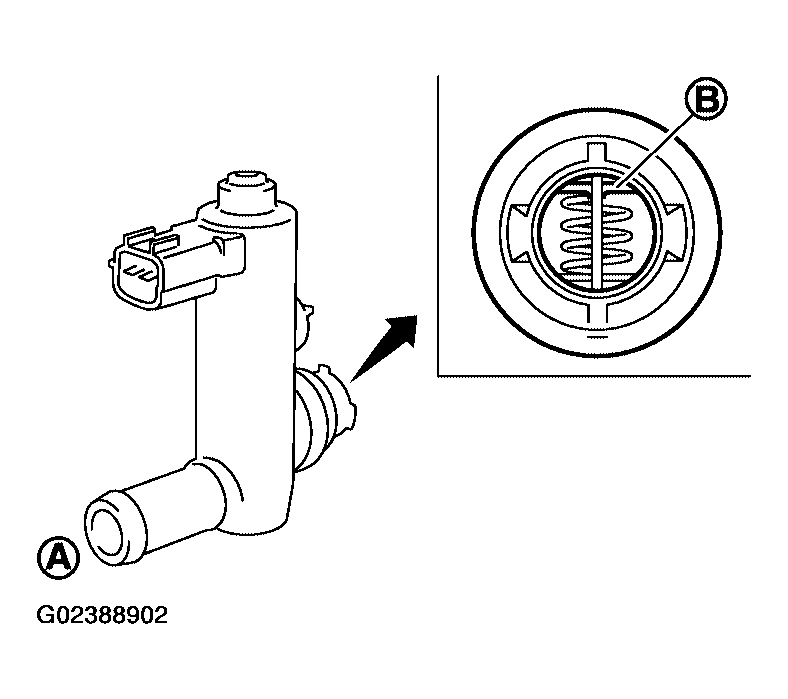

Fig 1: Locating Portion B Of EVAP Canister Vent Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.

Check air passage continuity and operation delay time.

Make sure new O-ring is installed properly.

AIR PASSAGE CONTINUITY CONDITION

Condition VENT CONTROL/V	Specifications
ON	NO
OFF	Yes
Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

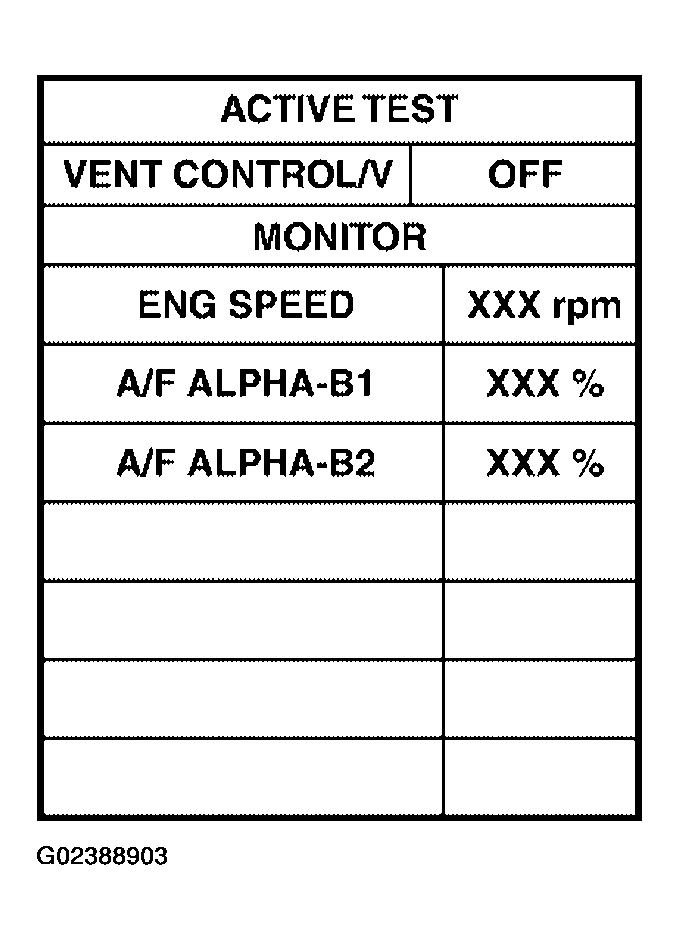

Fig 2: CONSULT-II Display - "VENT CONTROL/V" In "ACTIVE TEST" Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

Clean the air passage (portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 6 again.
