Without CONSULT-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

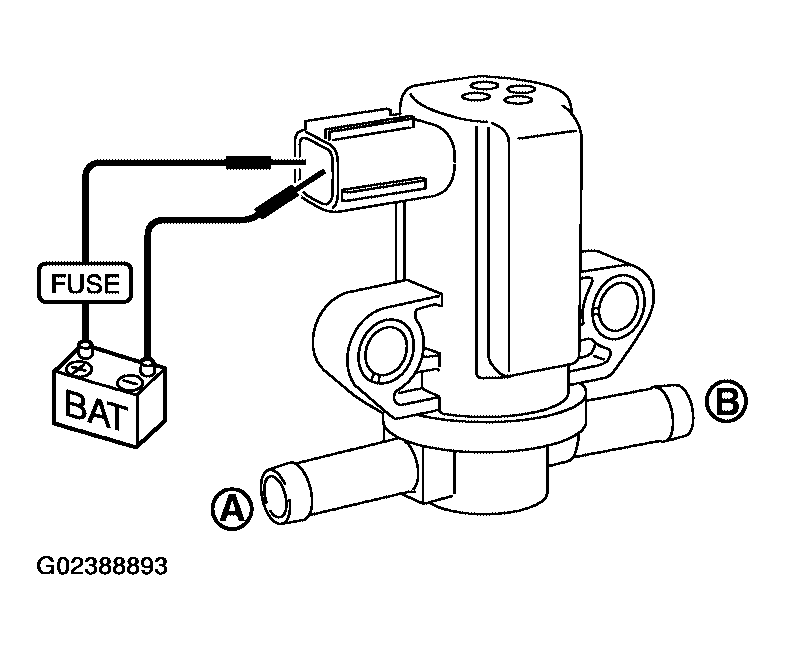

Fig 1: Checking Air Passage Continuity Of EVAP Canister Purge Volume Control Solenoid Valve (Without Consult-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

AIR PASSAGE CONTINUITY CONDITIONS SPECIFICATION

Condition	Air passage continuity between A and B
12V direct current supply between terminals 1 and 2	Yes
No supply	No
