With CONSULT-II
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

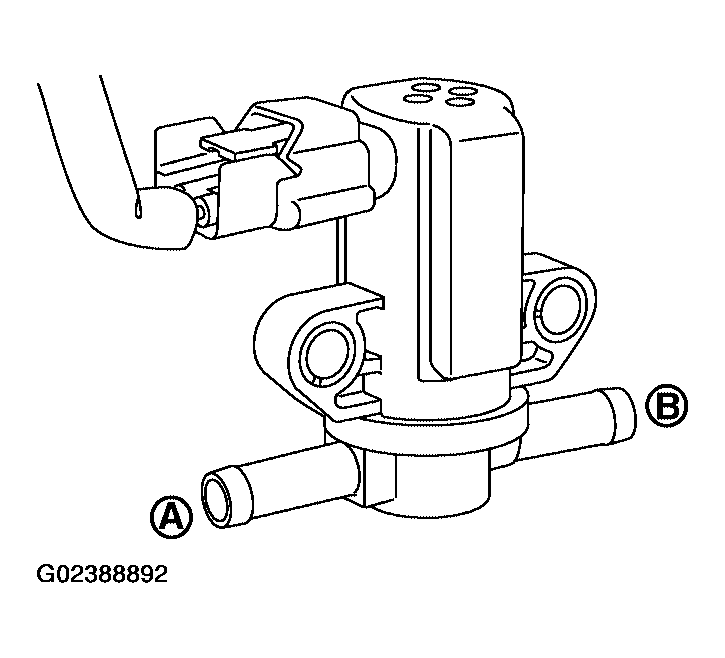

Fig 1: Checking Air Passage Continuity Of EVAP Canister Purge Volume Control Solenoid Valve (With Consult-II)
AIR PASSAGE CONTINUITY CONDITIONS SPECIFICATION
| Condition (PURG VOL CONT/V value) | Air passage continuity between A and B |
|---|---|
| 100% | Yes |
| 0% | No |
