DTC P0340: CMP Sensor (Phase): Wiring Diagram

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

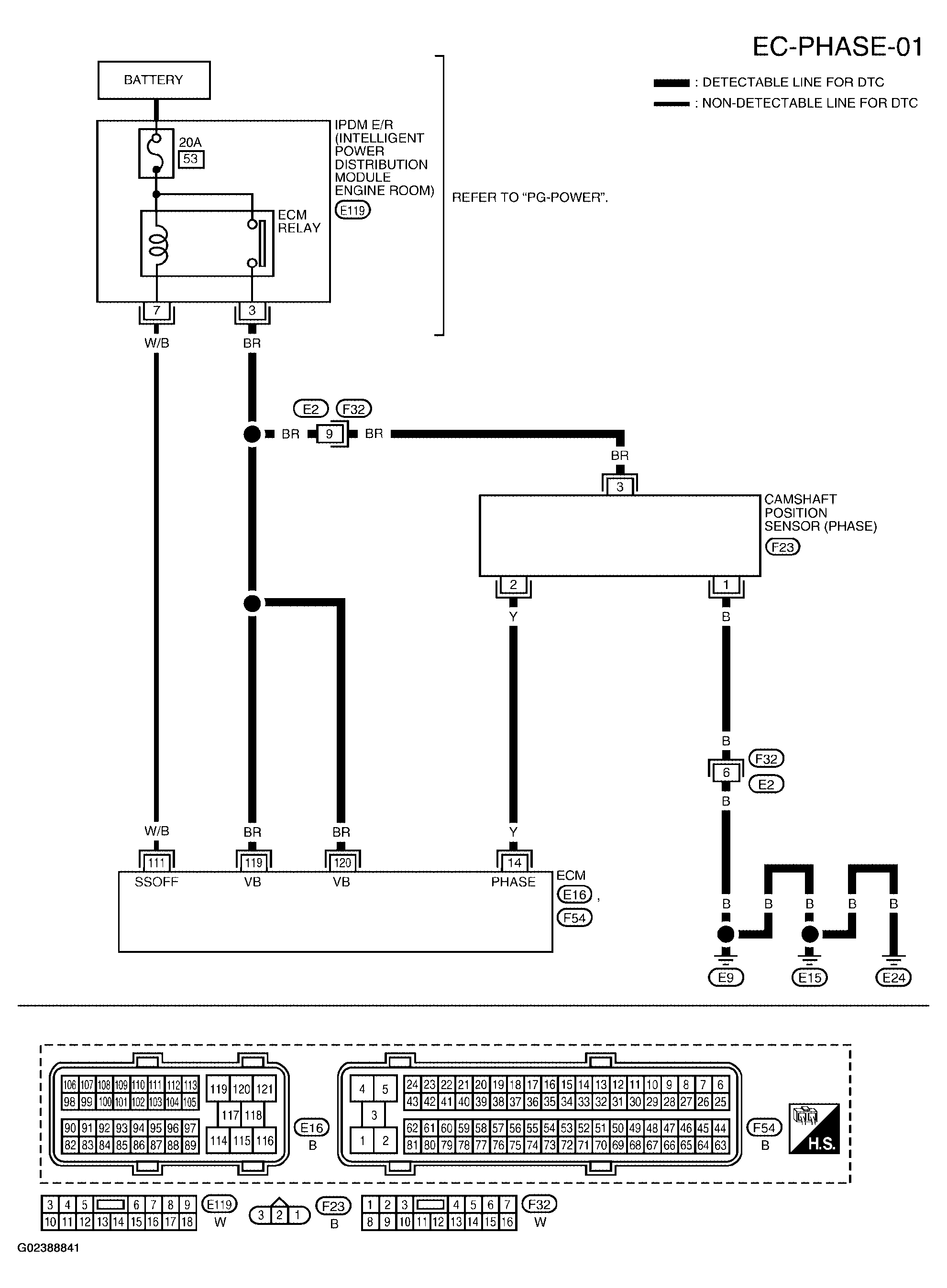

Fig 1: Wiring Diagram - EC-PHASE-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

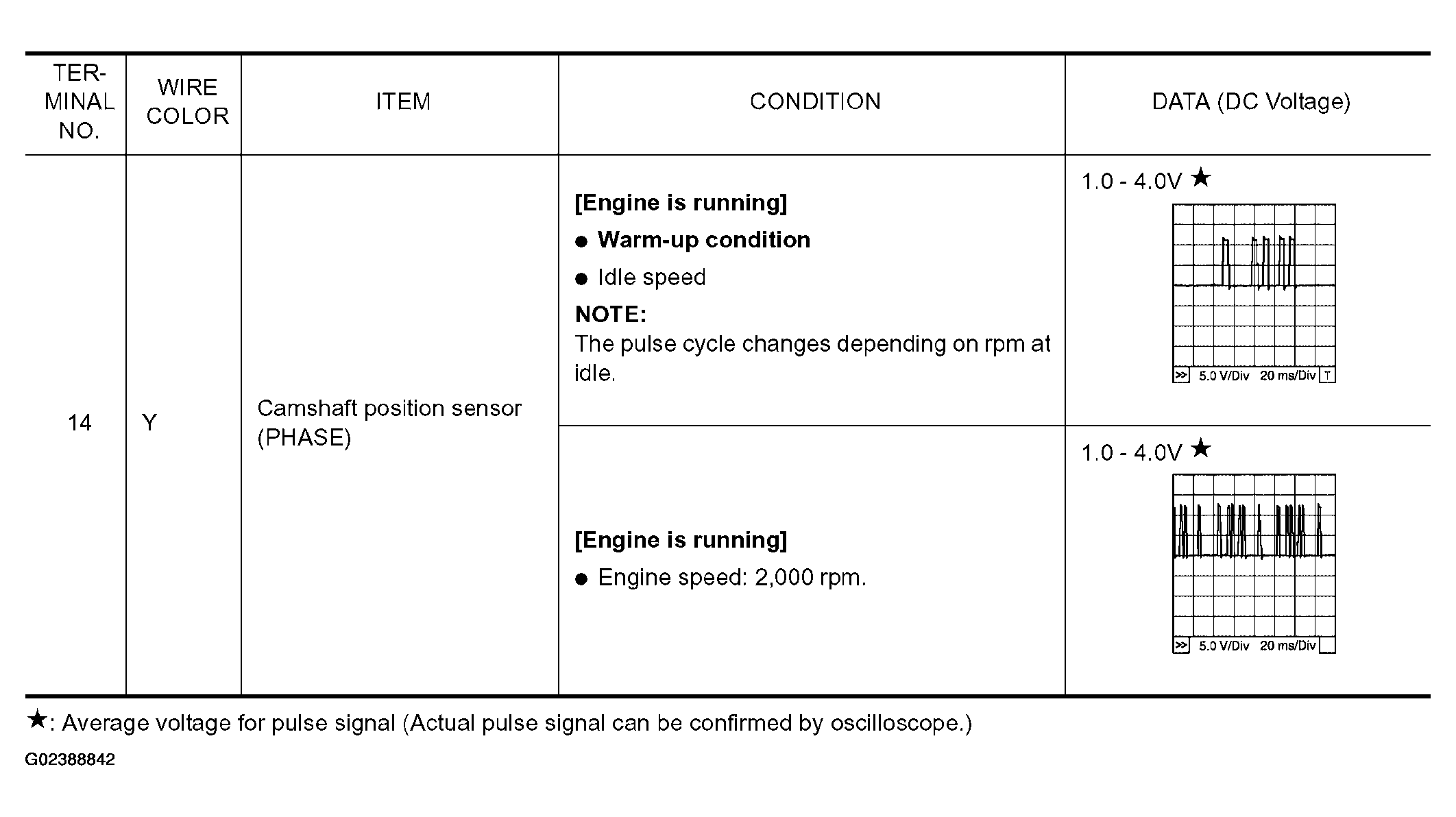

Fig 2: DTC P0340 Camshaft Position (CMP) Sensor (PHASE) - Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
