Knock Sensor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between knock sensor terminal 1 and ground.

NOTE: It is necessary to use an ohmmeter which can measure more than 10 MΩ.

Resistance: Approximately 532 - 588 KΩ [at 20°C (68°F)]

CAUTION: Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.

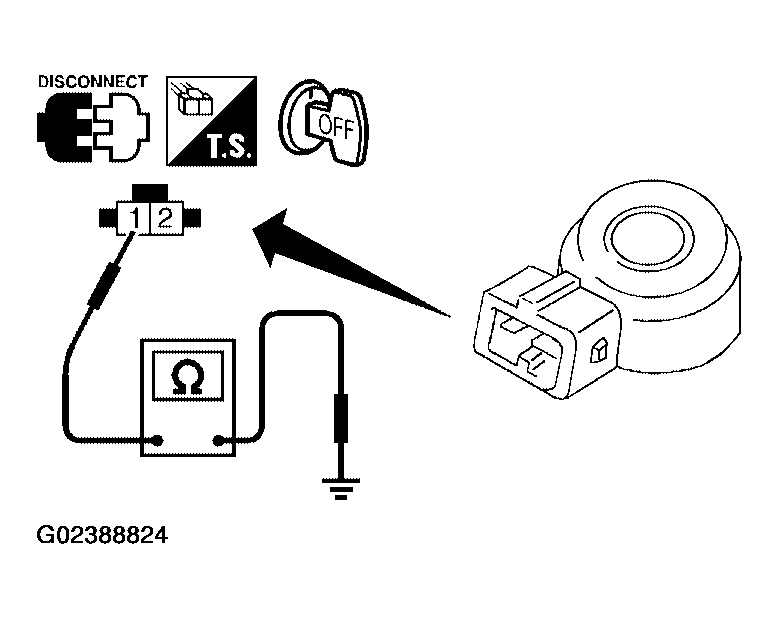

Fig 1: Checking Resistance Between Knock Sensor Terminal 1 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
