On Board Diagnosis Logic

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time. To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during the various driving condition such as fuel-cut.

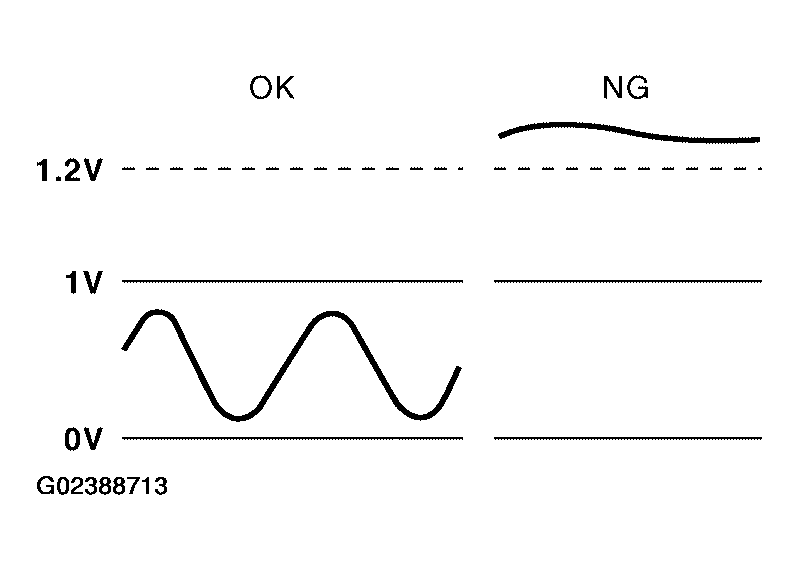

Fig 1: Heated Oxygen Sensor 2 Voltage Signal Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

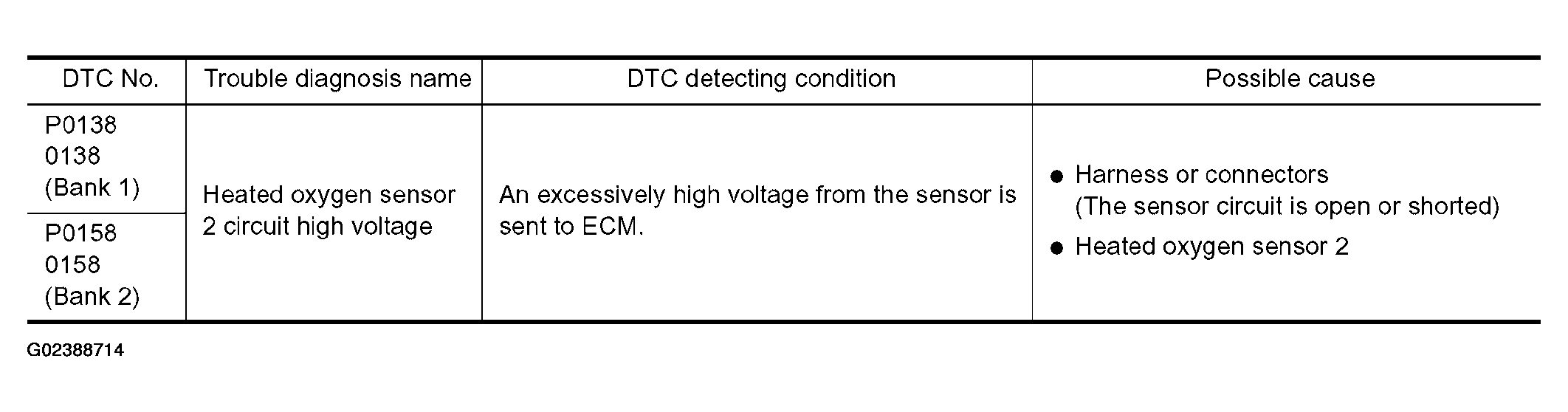

Fig 2: DTC P0138, P0158 HO2S2 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
