With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

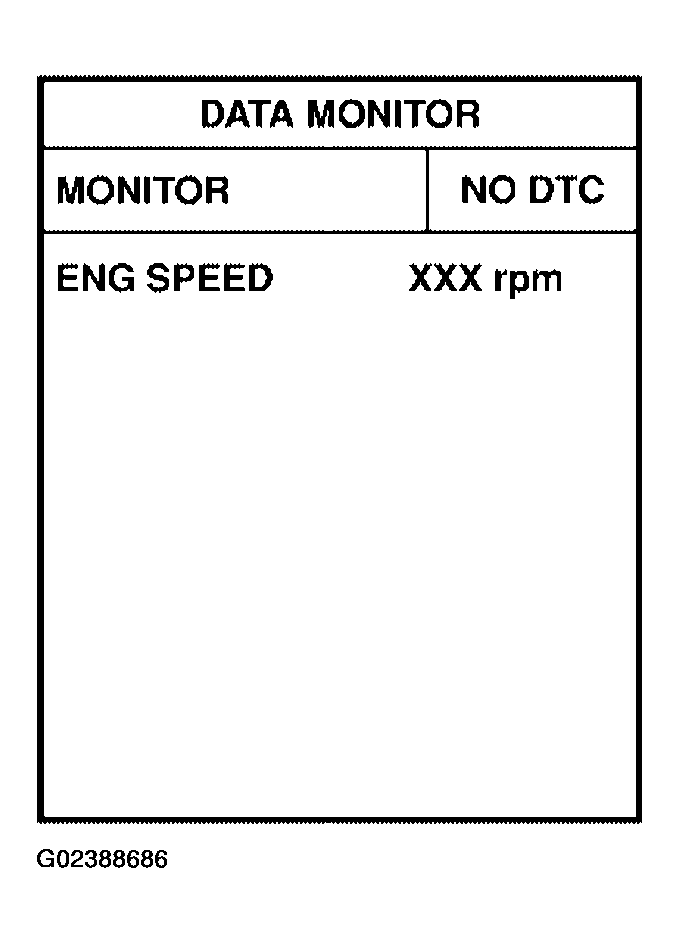

    Fig 1: CONSULT-II Display - "DATA MONITOR" Mode
    G02388686Courtesy of NISSAN MOTOR CO., U.S.A.
