Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front cover. Refer to "TIMING CHAIN ".
  2. Remove the oil pump drive spacer.

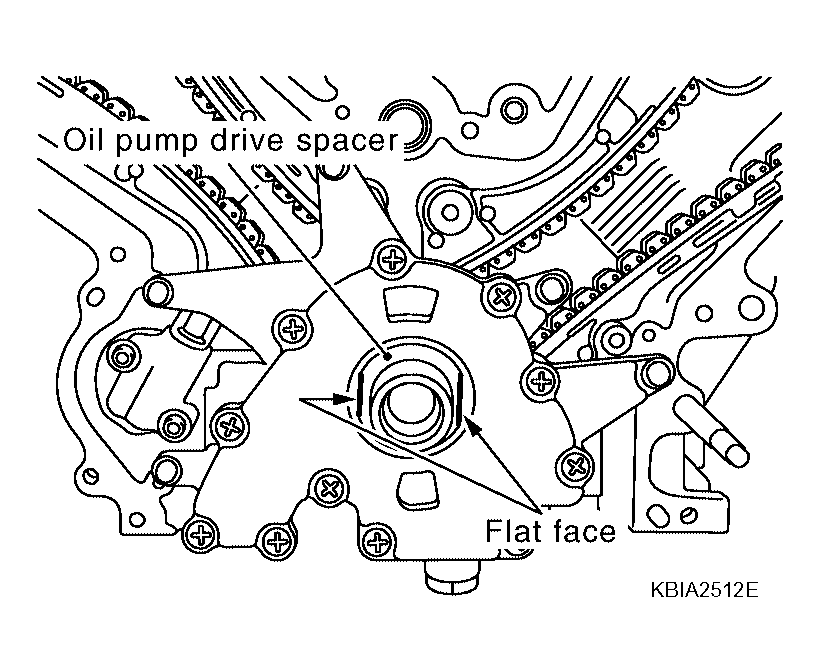

    Fig 1: Removing Oil Pump Drive Spacer
    G04132440Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the oil pump.
