Regulator Valve Clearance

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check regulator valve to oil pump cover clearance using the following formula.

(Clearance) = D₂ (Valve hole diameter) - D₂ (Outer Diameter of valve)
1. Regulator valve to oil pump cover: 0.040 - 0.097 mm (0.0016 - 0.0038 in)
CAUTION:
- Coat regulator valve with engine oil.
- Check that it falls smoothly into the regulator valve hole by its own weight.

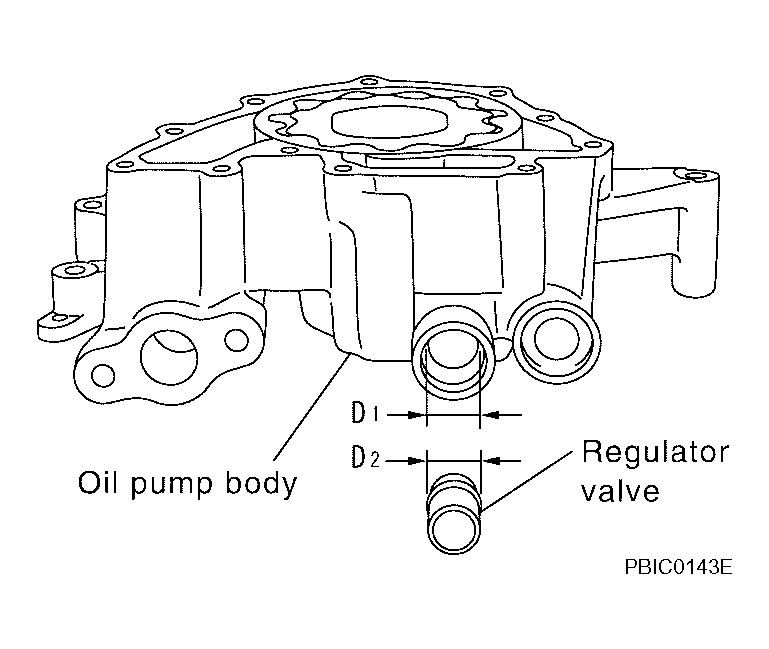

Fig 1: Measuring Regulator Valve Diameter
Courtesy of NISSAN MOTOR CO., U.S.A.
