Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine front undercover using power tool.
  2. Disconnect water hoses, pinching hoses near oil cooler to prevent engine coolant from spilling.
    CAUTION: Do not spill engine coolant on the drive belt.
  3. Remove oil filter. Refer to "REMOVAL AND INSTALLATION ".
    CAUTION: Do not spill engine oil on the drive belts.
  4. Remove connector bolt, and remove oil cooler.

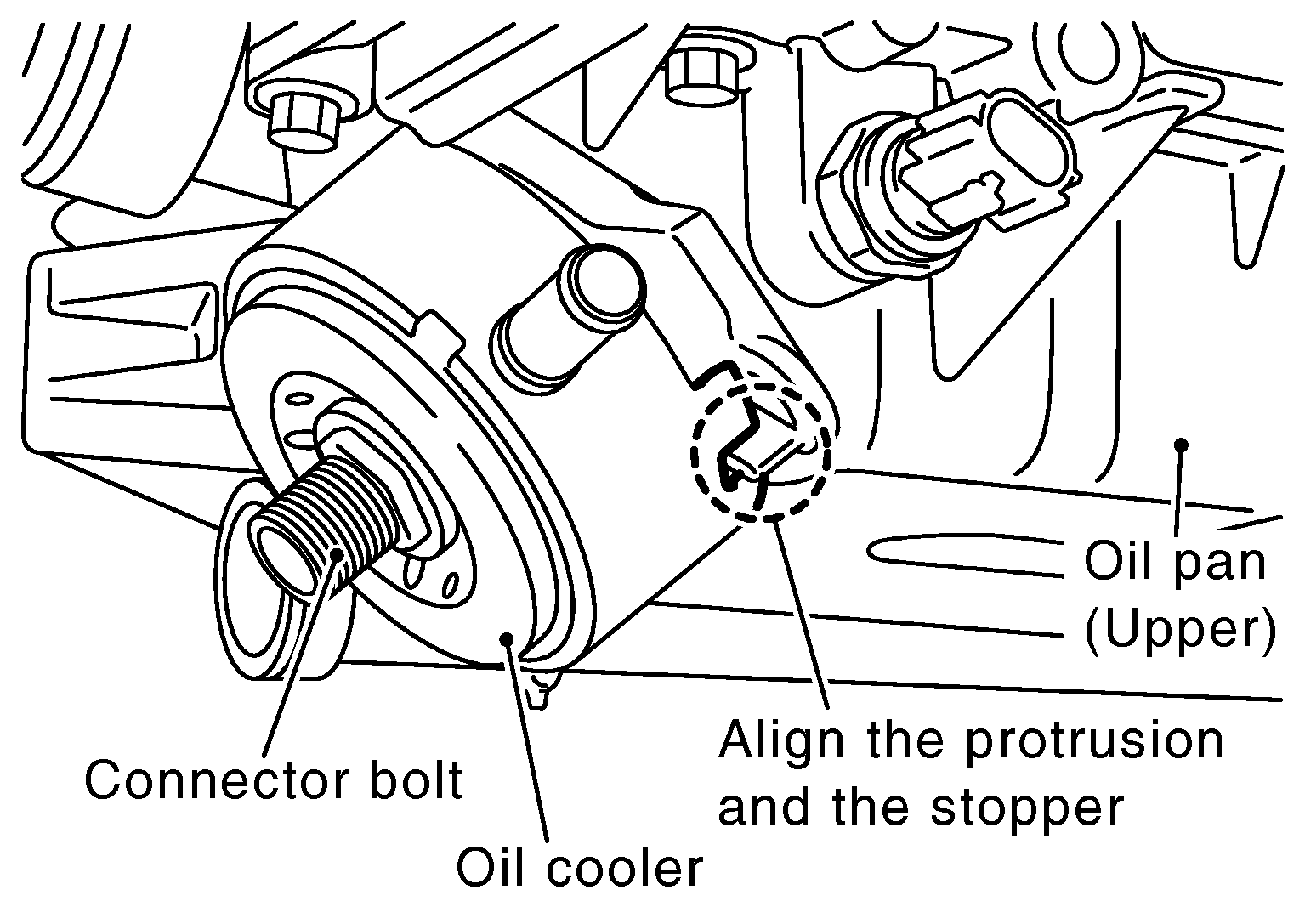

    Fig 1: Identifying Connector Bolt & Oil Cooler
    G04132438Courtesy of NISSAN MOTOR CO., U.S.A.
