Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

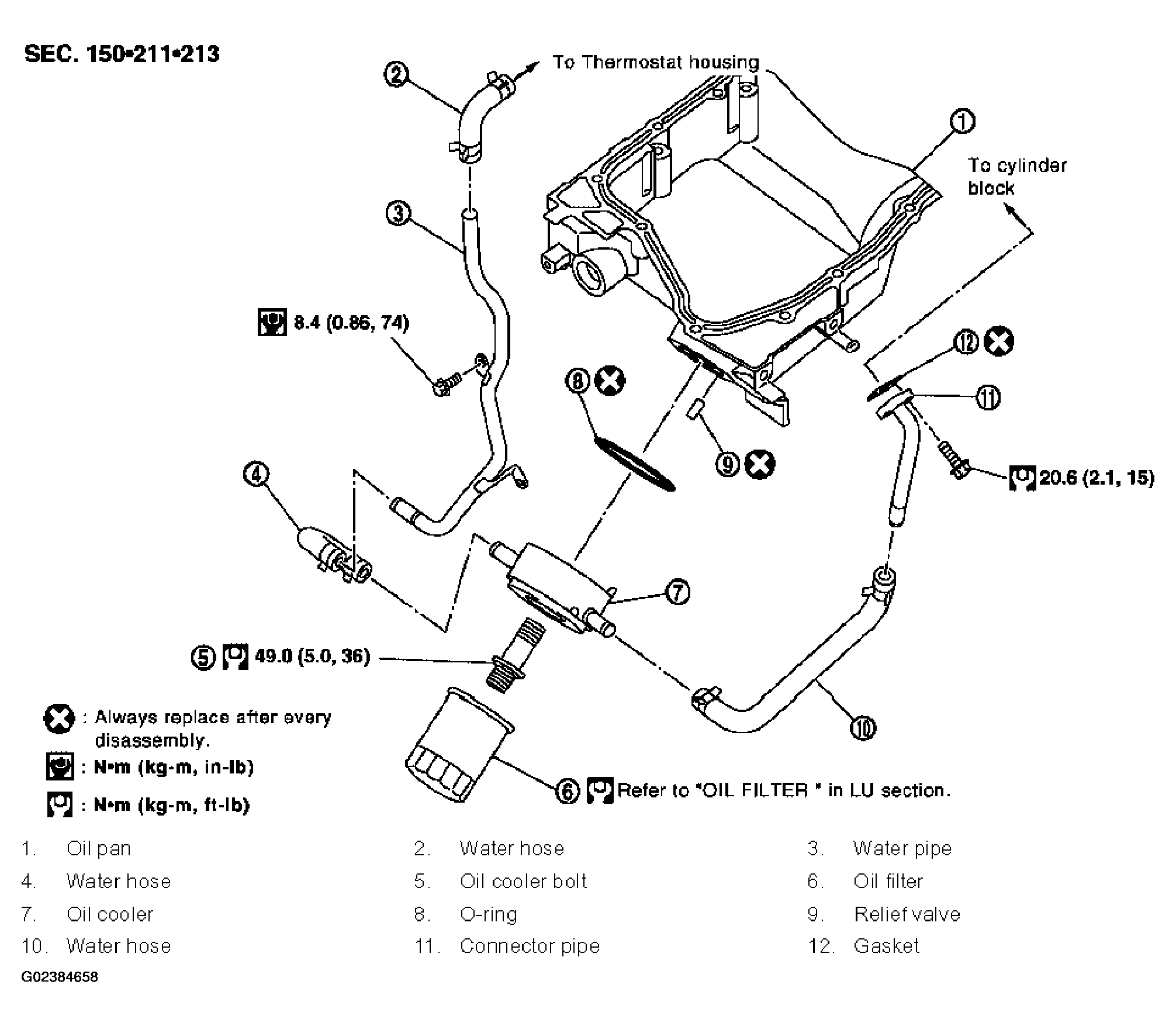

Fig 1: Oil Cooler Replacement Components With Torque Specifications
G02384658Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Be careful not to burn yourself, as the engine oil and engine coolant are hot.
