Main Bearing: Undersize

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
UNDERSIZE AND THICKNESS SPECIFICATION

Undersize Thickness Main journal diameter
0.25 (0.0098) 2.618 - 2.626 (0.1030 - 0.1034) Grind so that bearing clearance is the specified value.

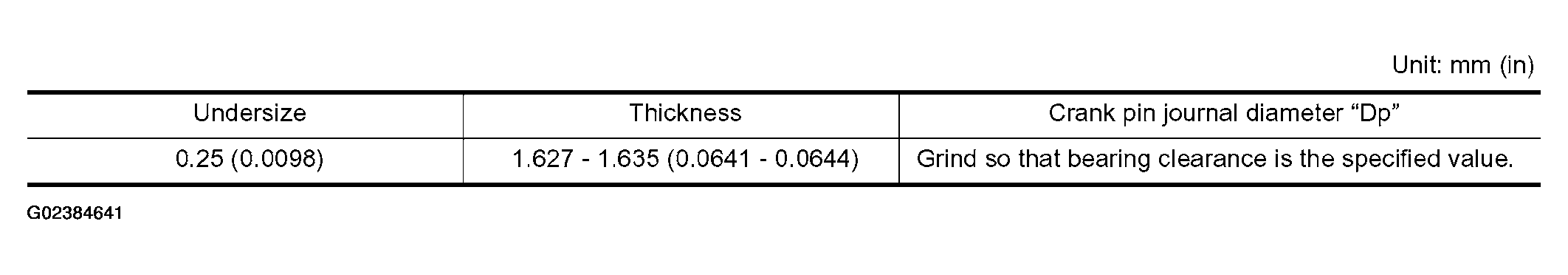

Fig 1: Undersize And Thickness Specification Chart
G02384641Courtesy of NISSAN MOTOR CO., U.S.A.
