Standard and Limit: Crankshaft

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

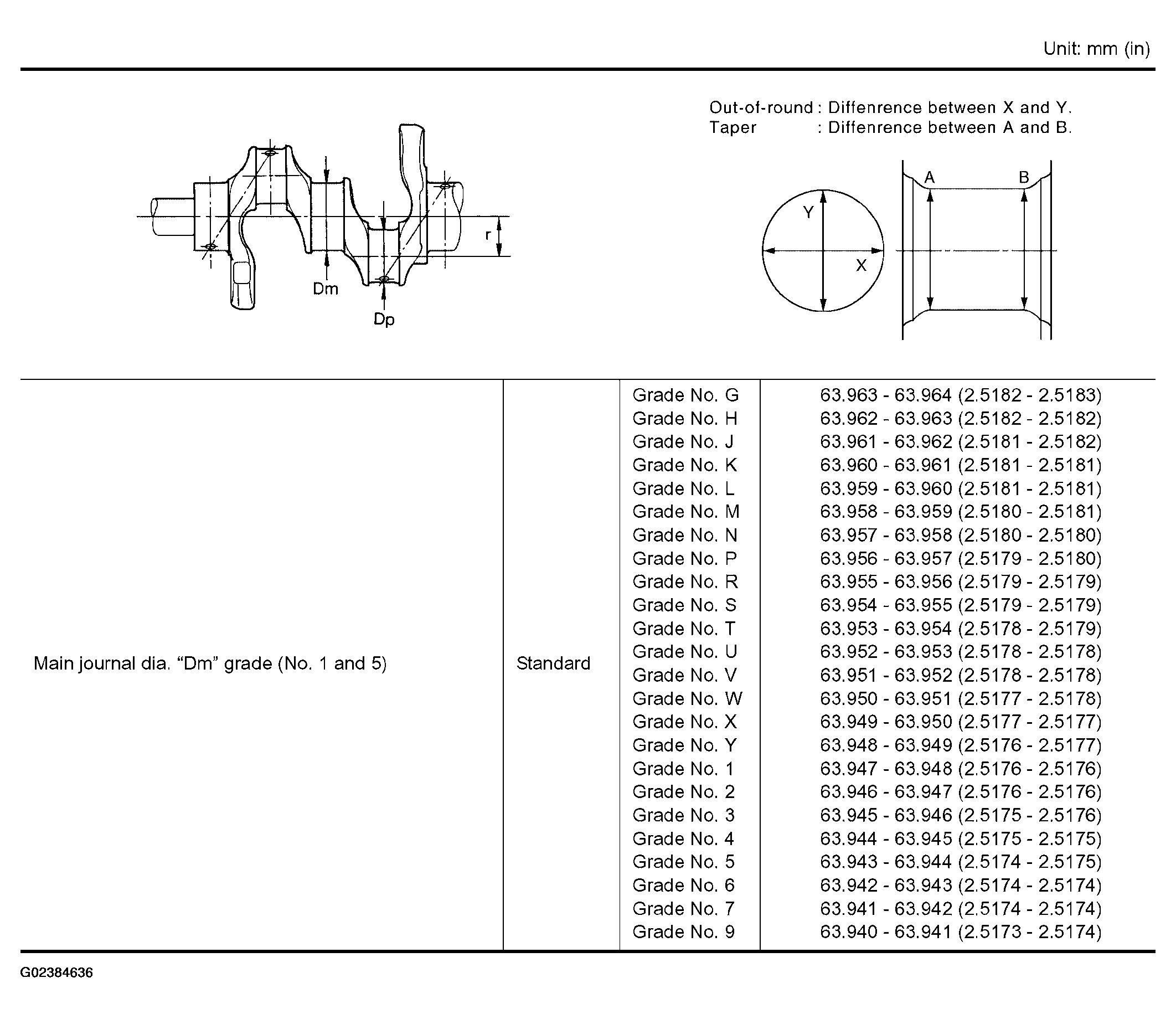

Fig 1: Crankshaft Specification Chart (1 Of 2)
G02384636Courtesy of NISSAN MOTOR CO., U.S.A.

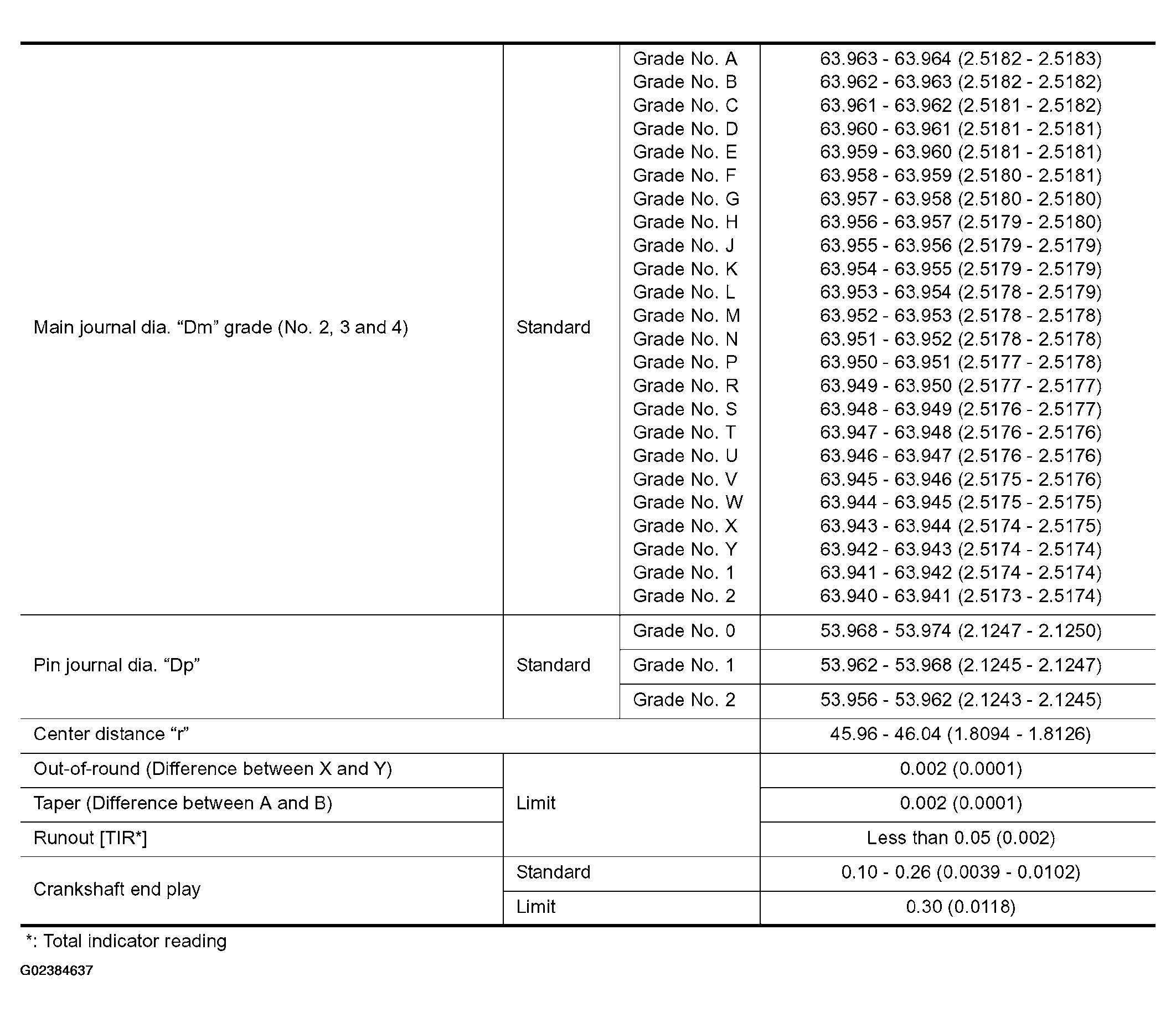

Fig 2: Crankshaft Specification Chart (2 Of 2)
G02384637Courtesy of NISSAN MOTOR CO., U.S.A.
