Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover using power tool. Refer to "REMOVAL ".
  2. Remove the air duct and resonator assembly. Refer to "REMOVAL " (for left bank only).
  3. Move the harness on the upper rocker cover and its peripheral aside.
  4. Remove the electric throttle control actuator, loosening the bolts diagonally (for left bank only).
  5. Remove the ignition coil. Refer to "REMOVAL ".
  6. Remove the PCV hose from the PCV control valve.
  7. Loosen the bolts in reverse order shown using power tool.
    CAUTION: Do not hold the rocker cover by the oil filler neck (right bank).

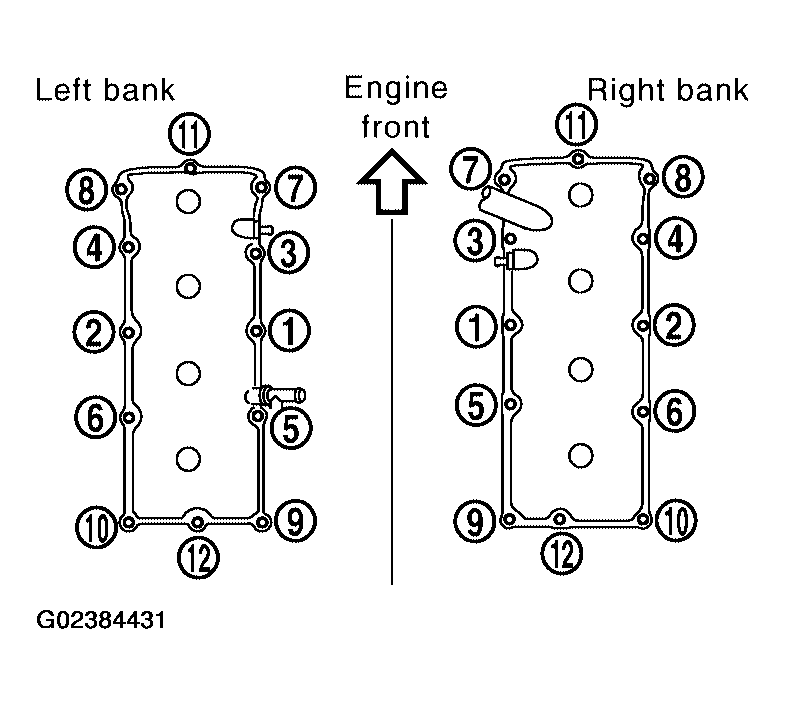

    Fig 1: Removal Sequence Of Rocker Cover Bolts
    G02384431Courtesy of NISSAN MOTOR CO., U.S.A.
