Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the old liquid gasket adhering to the gasket application surface and the mating surface using suitable tool.
- Remove the liquid gasket completely from the groove of the liquid gasket application surface, bolts, and bolt holes.
Thoroughly clean the mating surfaces and remove adhering moisture, grease and foreign material.

Fig 1: Removing Old Liquid Gasket Adhering To Gasket Application Surface And Mating Surface Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Attach the liquid gasket tube to the Tool.
1. Tool number: WS39930000 (-)
Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
Apply the liquid gasket without breaks to the specified location with the specified dimensions.

Fig 2: Attaching Liquid Gasket Tube To Tool (WS39930000)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If there is a groove for the liquid gasket application, apply the liquid gasket to the groove.
- As for the bolt holes, normally apply the liquid gasket inside the holes. If specified in the procedure, it should also be applied outside the holes.
- Within five minutes of liquid gasket application, install the mating component.
- If the liquid gasket protrudes, wipe it off immediately.
- Do not retighten after the installation.
- Wait 30 minutes or more after installation before refilling the engine with engine oil and engine coolant.
CAUTION: If there are specific instructions in this article, observe them.

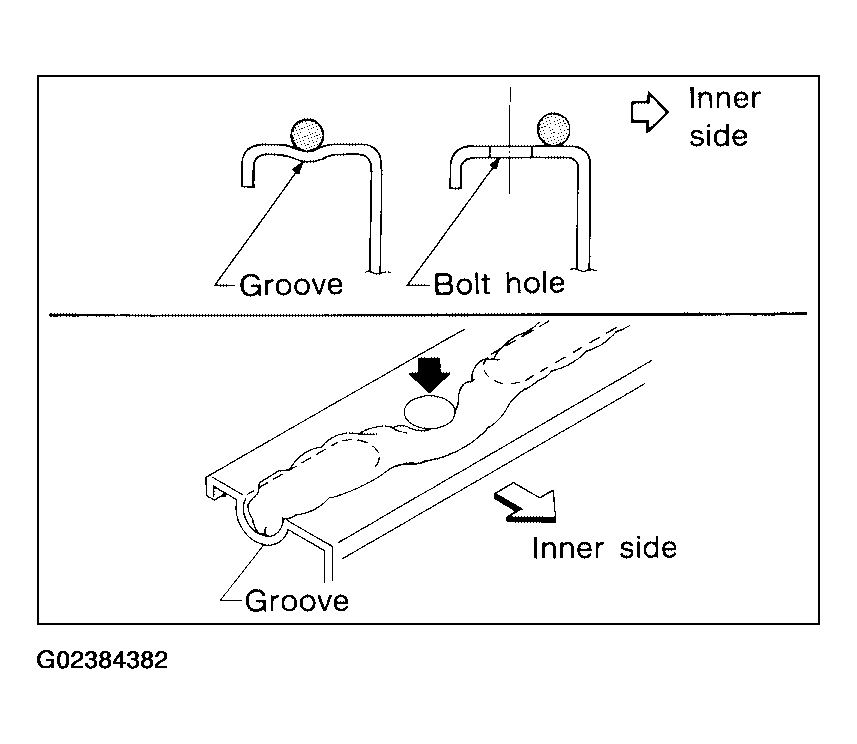

Fig 3: Applying Liquid Gasket To Groove And Inside Bolt Holes
Courtesy of NISSAN MOTOR CO., U.S.A.
