Removal and Installation of Valve Oil Seal: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the valve oil seal using Tool.
1. Tool number: KV10115600 (J-38958)
Apply new engine oil on the new valve oil seal joint and seal lip.
Install the valve oil seal to the specified height "H".
1. Height "H" (Without valve spring seat installed)
  1. Intake and exhaust: 14.3 - 14.9 mm (0.563 - 0.587 in)

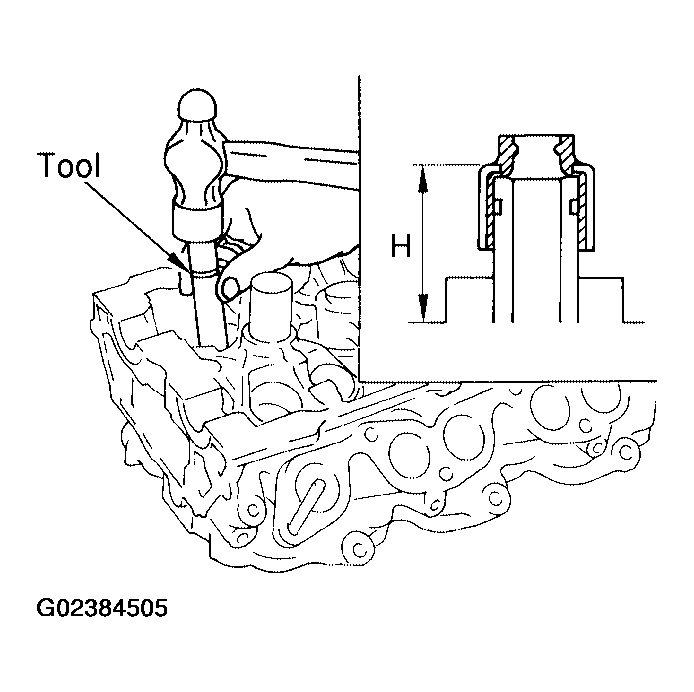

Fig 1: Installing Valve Oil Seal To Specified Height "H" Using Tool (KV10115600)
Courtesy of NISSAN MOTOR CO., U.S.A.
