Removal and Installation of Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly. Refer to "REMOVAL AND INSTALLATION (4X2) " or "REMOVAL AND INSTALLATION (4X4) ".
    1. Remove the drive plate.
      • Holding the crankshaft pulley bolt, lock the crankshaft and remove the drive plate bolts.
      • Remove the bolts diagonally.
      CAUTION:
      • Do not damage the drive plate. Especially, avoid deforming and damaging the signal plate teeth (circumference position).
      • Place the drive plate with the signal plate surface facing other than downward.
      • Keep magnetic materials away from signal plate.
    2. Remove the engine rear plate.
  2. Remove the rear oil seal using suitable tool.
    CAUTION: Do not damage crankshaft or oil seal retainer surface.

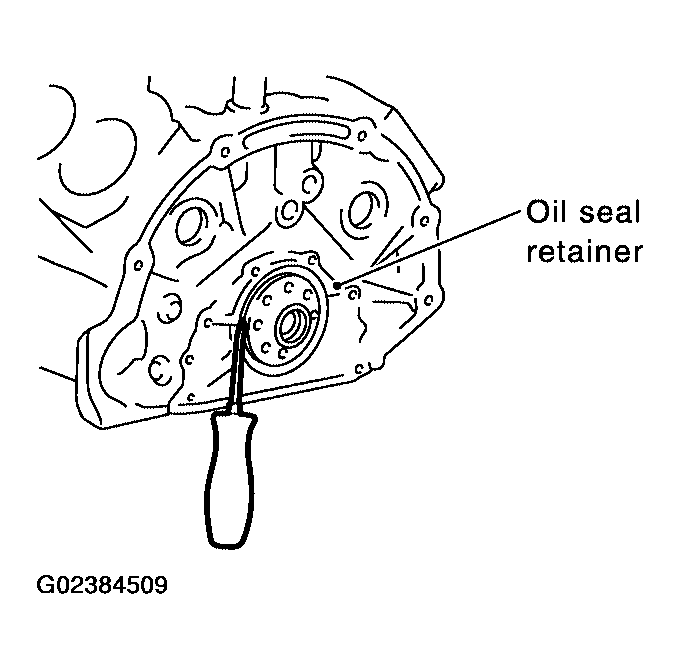

    Fig 1: Removing Rear Oil Seal Using Suitable Tool
    G02384509Courtesy of NISSAN MOTOR CO., U.S.A.
