Removal and Installation of Front Oil Seal: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine. Refer to "REMOVAL ".
  2. Remove the crankshaft pulley. Refer to "TIMING CHAIN ".
  3. Remove the front oil seal using suitable tool.
    CAUTION: Do not damage front cover and oil pump drive spacer.

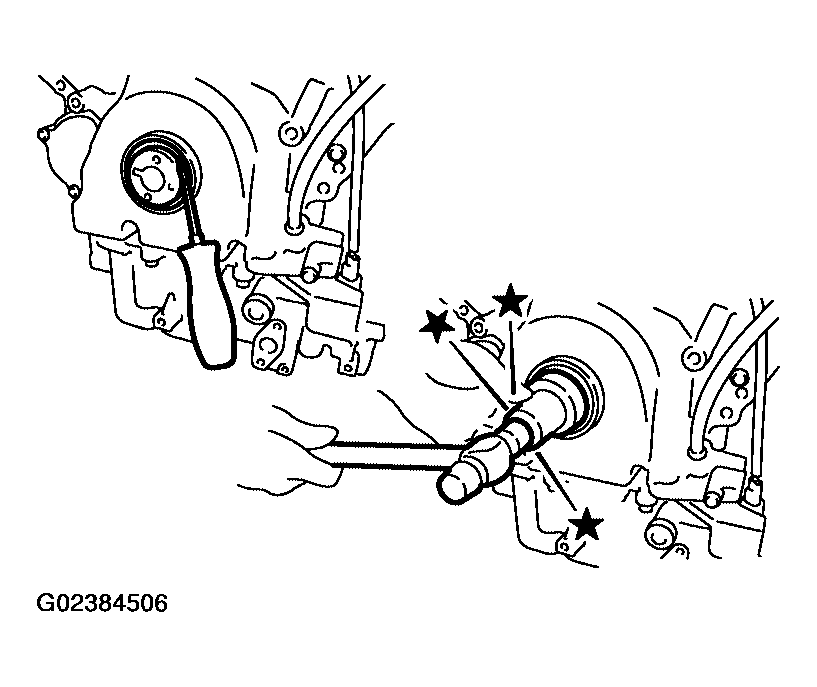

    Fig 1: Removing Front Oil Seal Using Suitable Tool
    G02384506Courtesy of NISSAN MOTOR CO., U.S.A.
