Use the Chart Below to Help You Find the Cause of the Symptom.

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the area where noise occurs.
  2. Confirm the type of noise.
  3. Specify the operating condition of engine.
  4. Check specified noise source.

    If necessary, repair or replace these parts.

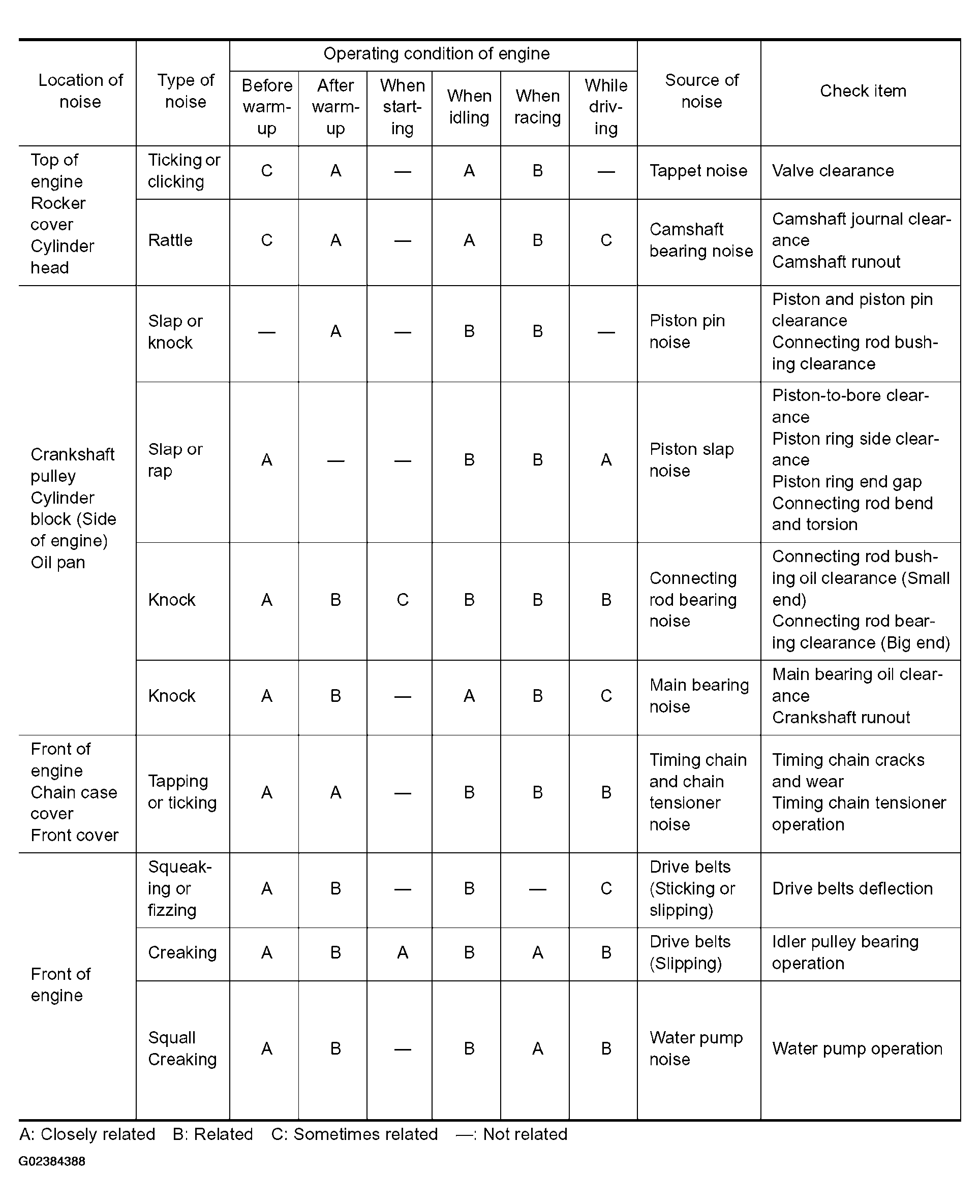

    Fig 1: NVH Troubleshooting Symptom Chart
    G02384388Courtesy of NISSAN MOTOR CO., U.S.A.
