Drive Belt: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air duct and resonator assembly. Refer to AIR CLEANER AND AIR DUCT .
  2. Install Tool on auto tensioner pulley bolt, move in the direction of arrow (loosening direction of tensioner) as shown.
    1. Tool number: - (J-46535)
    CAUTION: Avoid placing hand in a location where pinching may occur if the holding tool accidentally comes off.
  3. Remove the drive belt.

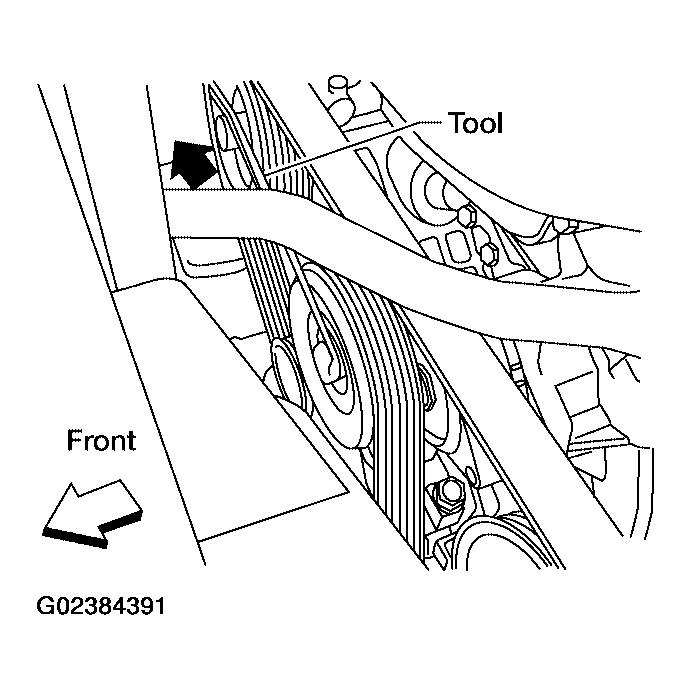

    Fig 1: Installing Tool (J-46535) On Auto Tensioner Pulley Bolt, And Moving In Direction Of Arrow
    G02384391Courtesy of NISSAN MOTOR CO., U.S.A.
