Piston Skirt Diameter

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure piston skirt diameter using suitable tool.
1. Standard: 97.980 - 98.010 mm (3.8575 - 3.8587 in)

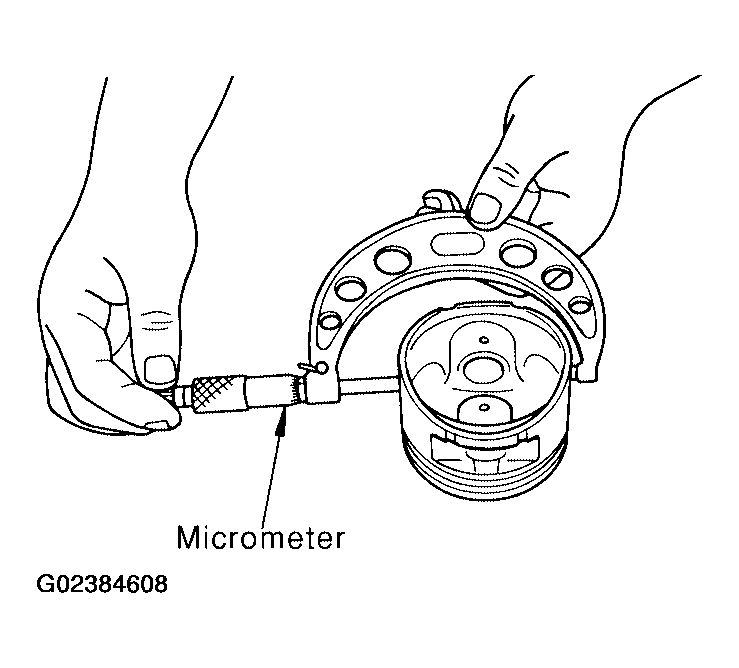

Fig 1: Measuring Piston Skirt Diameter Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure point "H".
1. Distance from the top: 39 mm (1.54 in)

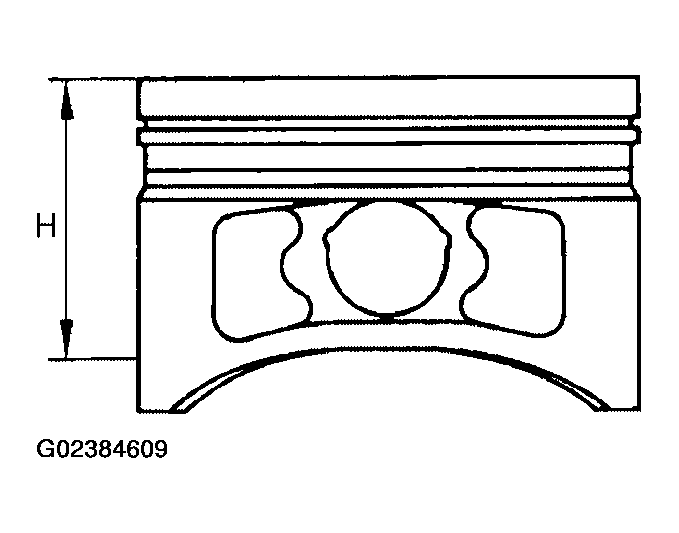

Fig 2: Identifying Measure Point "H"
Courtesy of NISSAN MOTOR CO., U.S.A.
