Crush Height Of Connecting Rod Bearing

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

When connecting rod bearing cap is removed after being tightened to the specified torque with the connecting rod bearings installed, the tip end of the bearing must protrude. Refer to "ASSEMBLY " for the tightening procedure.
1. Standard: There must be crush height.
If standard is not met, replace connecting rod bearings.

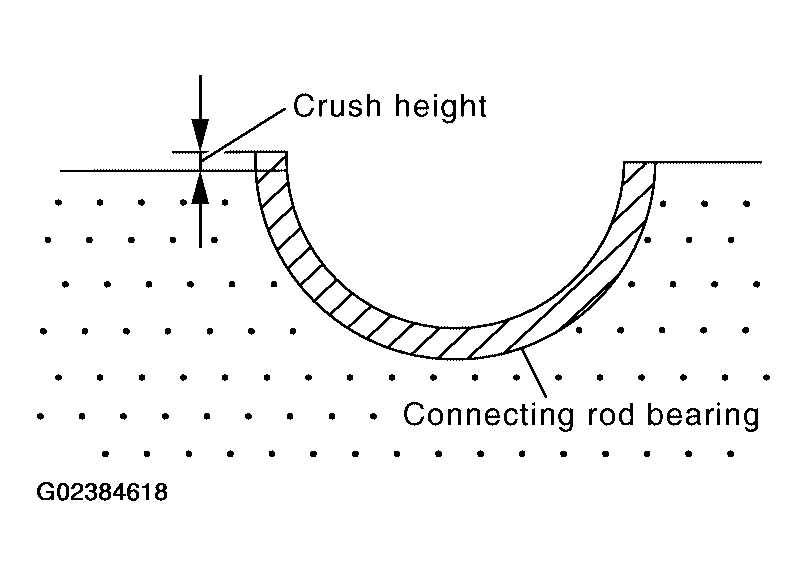

Fig 1: Identifying Crush Height Of Connecting Rod Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
