Connecting Rod Bolt Diameter
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

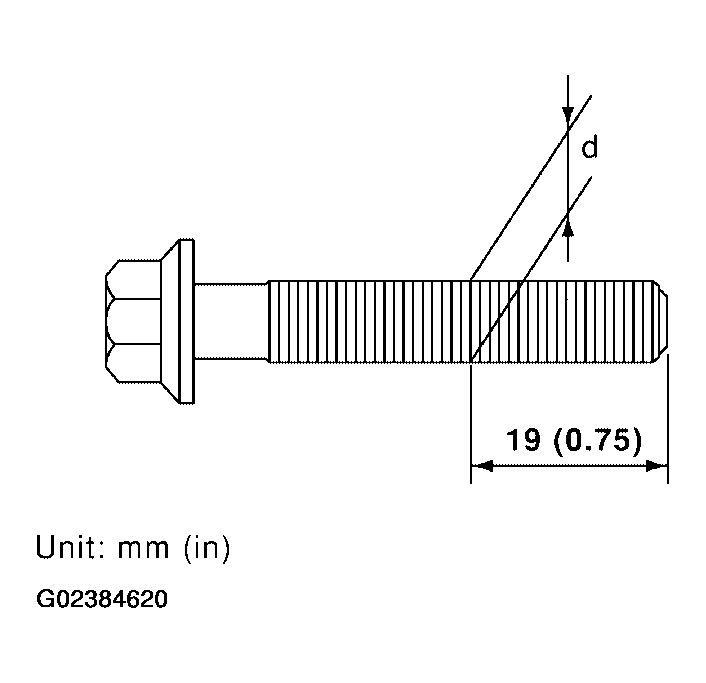

- Measure diameter "d" at position shown.
- When "d" is out of specifications (when it becomes thinner), replace bolt with a new one.
- Limit: 7.75 mm (0.3051 in) or less.
Courtesy of NISSAN MOTOR CO., U.S.A.
