Main Bearings Selection Table (No. 1 and No. 5 journal)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

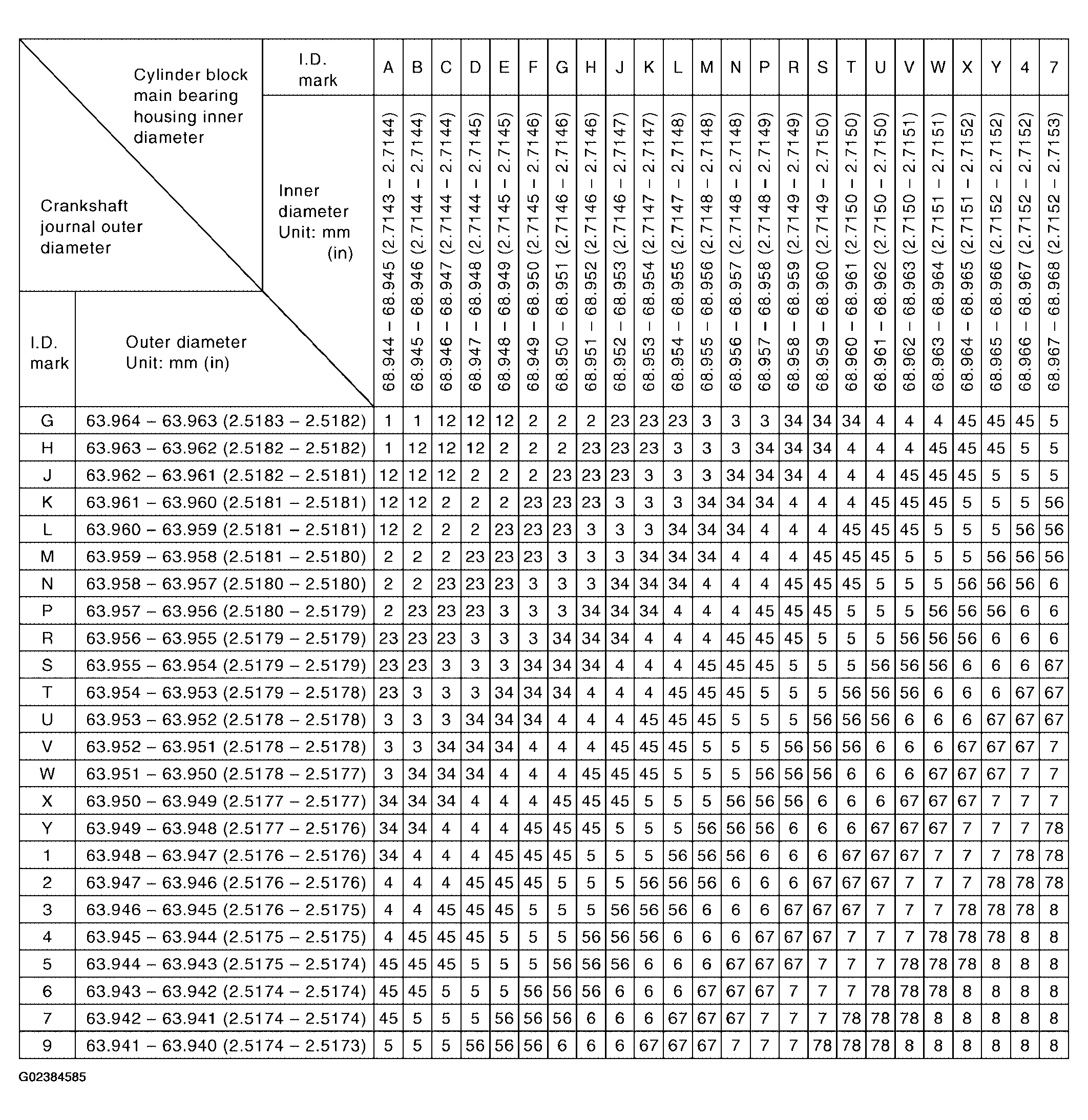

Fig 1: Main Bearings Selection Table (No. 1 And No. 5 Journal)
G02384585Courtesy of NISSAN MOTOR CO., U.S.A.
