When New Connecting Rod and Crankshaft are Used

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the big end inside diameter grade stamped on the connecting rod side face to the row in the "Connecting Rod Bearing Selection Table".

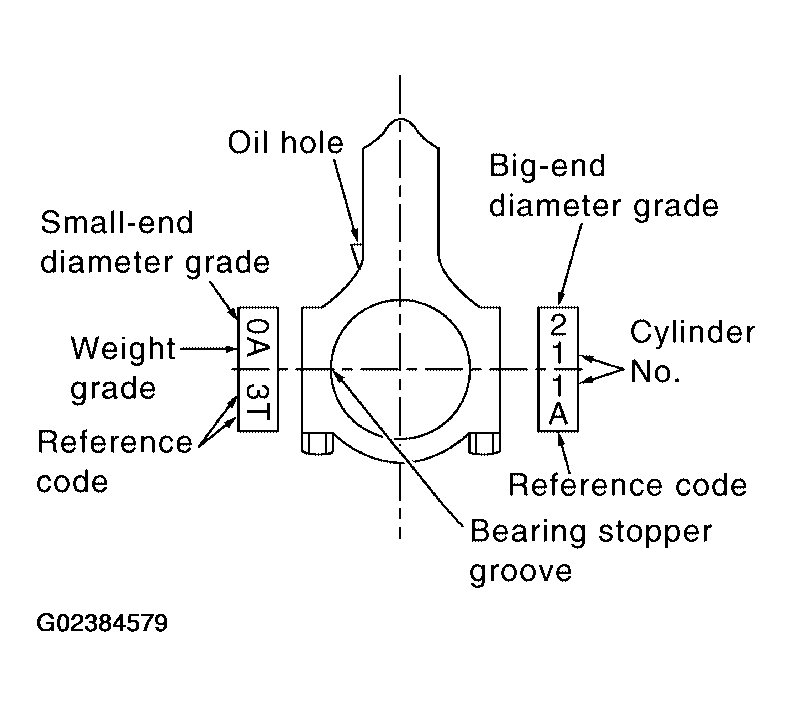

    Fig 1: How To Select Connecting Rod Bearing
    G02384579Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply the pin diameter grade stamped on the crankshaft front side to the column in the "Connecting Rod Bearing Selection Table".
  3. Read the symbol at the cross point of selected row and column in the "Connecting Rod Bearing Selection Table".
  4. Apply the symbol obtained to the "Connecting Rod Bearing Grade Table" to select.

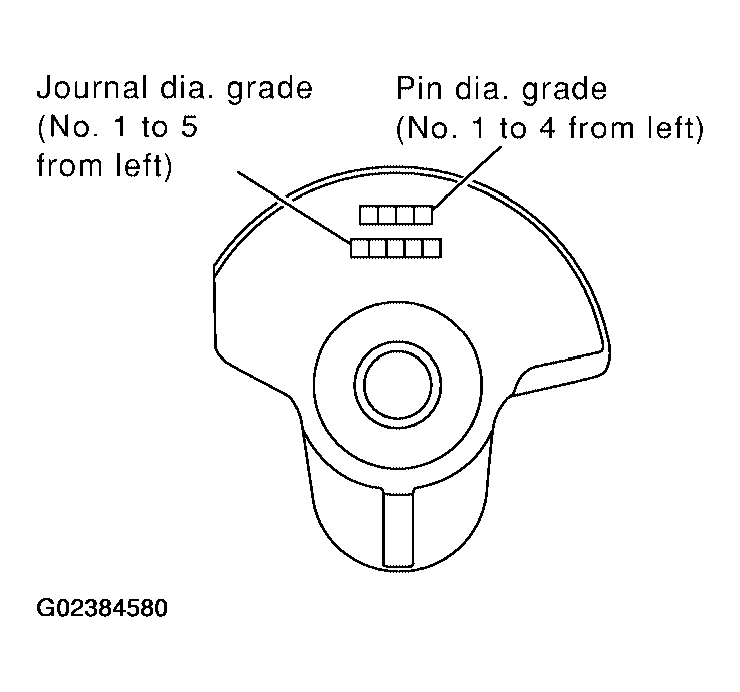

    Fig 2: Identifying Pin Diameter Grade And Journal Diameter Grade
    G02384580Courtesy of NISSAN MOTOR CO., U.S.A.
