Calculation of Valve Lifter Clearance
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

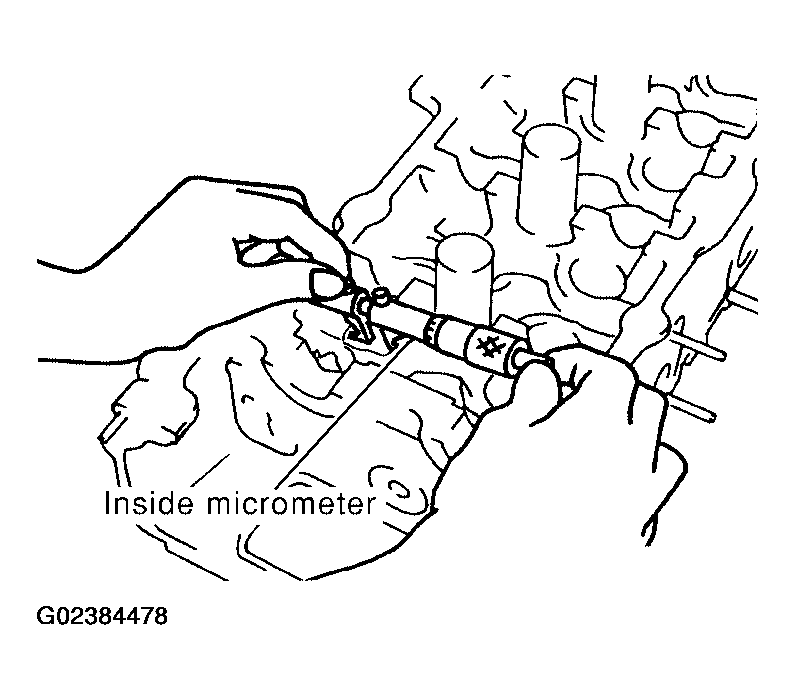

(Valve lifter clearance) = (valve lifter hole diameter) - (valve lifter diameter)
- Standard: 0.013 - 0.039 mm (0.0005 - 0.0015 in)
- If the measurement is not within specification, referring to each specification of the valve lifter diameter and hole diameter, replace either or both the valve lifter and cylinder head.
