Camshaft Cam Height

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure the camshaft cam height.
1. Standard cam height (intake & exhaust): 44.465 - 44.655 mm (1.7506-1.7581 in)
2. Cam wear limit (intake & exhaust): 0.02 mm (0.0008 in)
If measurement is not within the specifications, replace the camshaft.

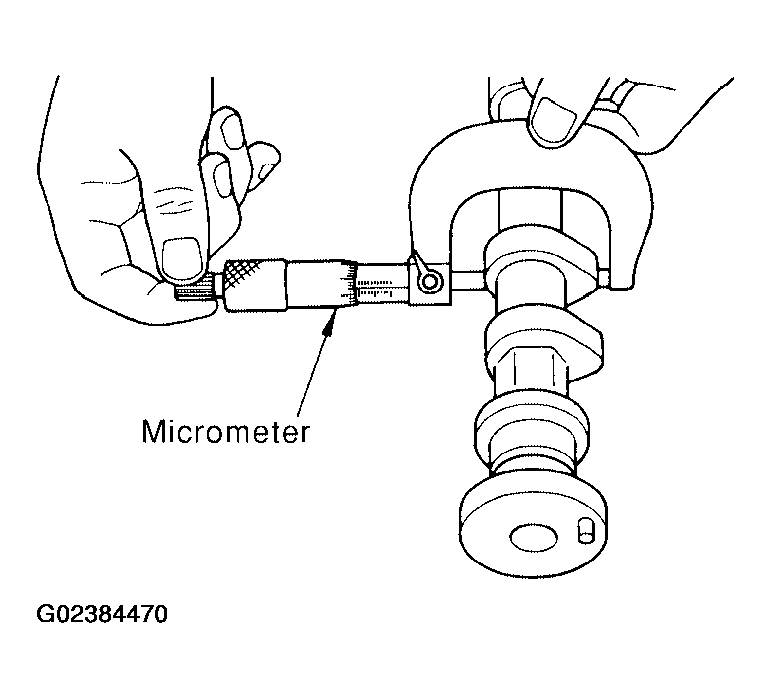

Fig 1: Measuring Camshaft Cam Height
Courtesy of NISSAN MOTOR CO., U.S.A.
