Tightening Torque Table

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

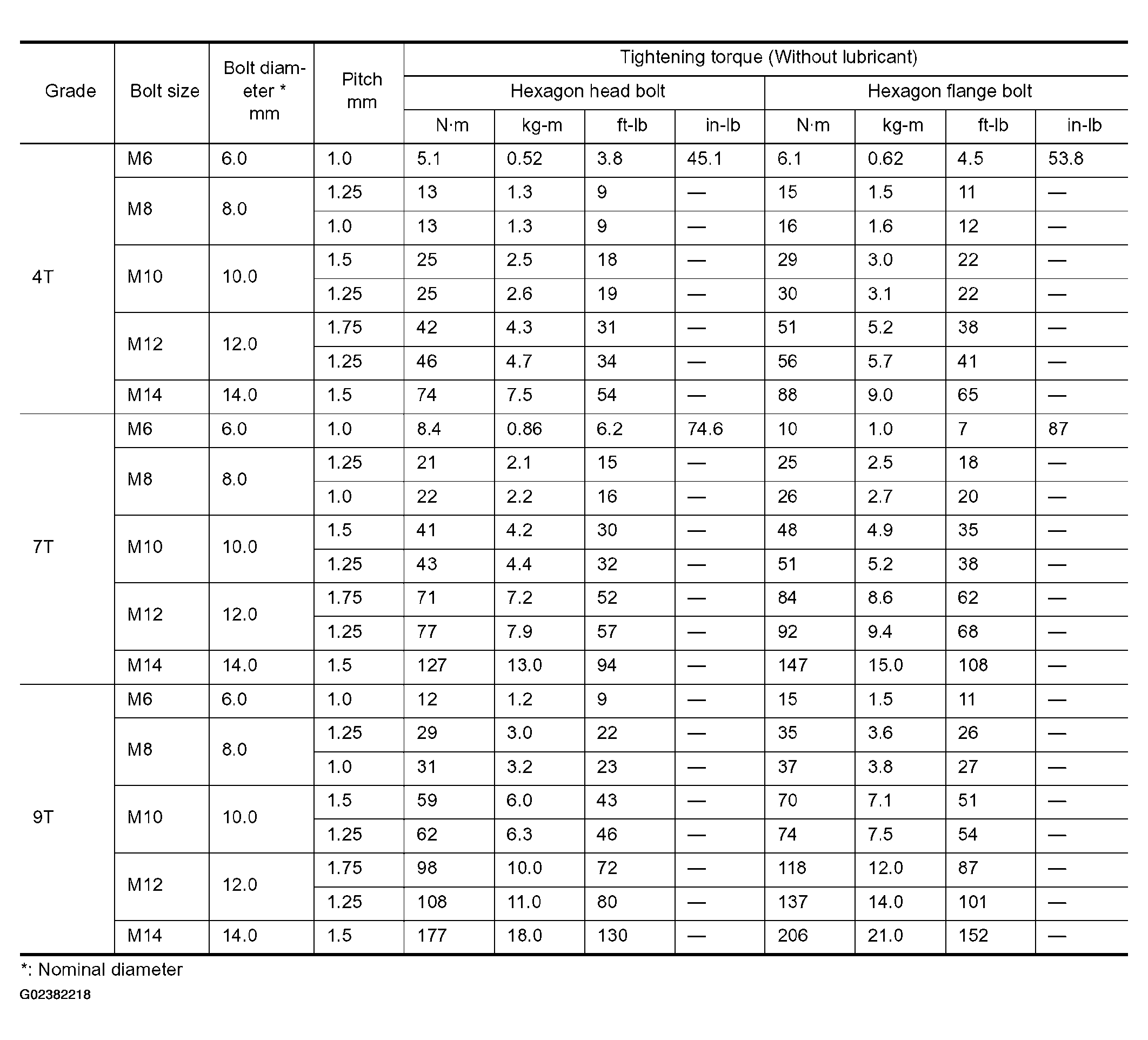

Fig 1: Standard Bolts - Tightening Torque Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Special parts are excluded.
This standard is applicable to bolts having the following marks embossed on the bolt head.

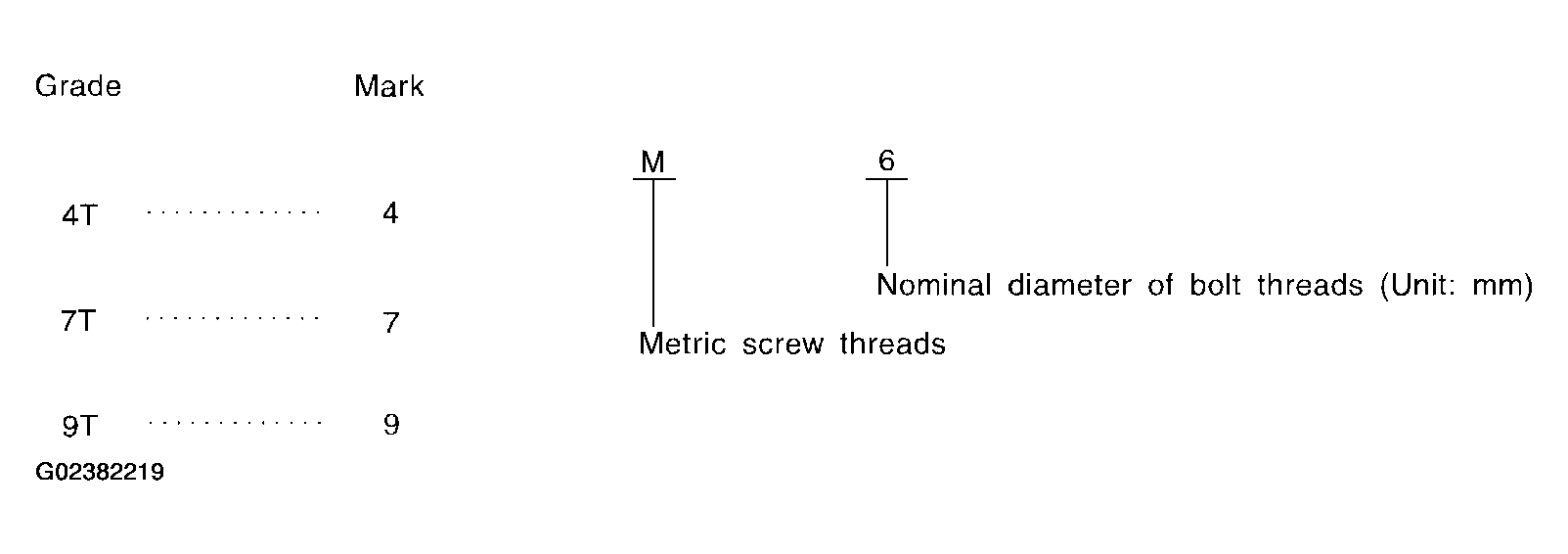

Fig 2: Bolt Head Grade And Mark Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
