Pantograph Jack

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.

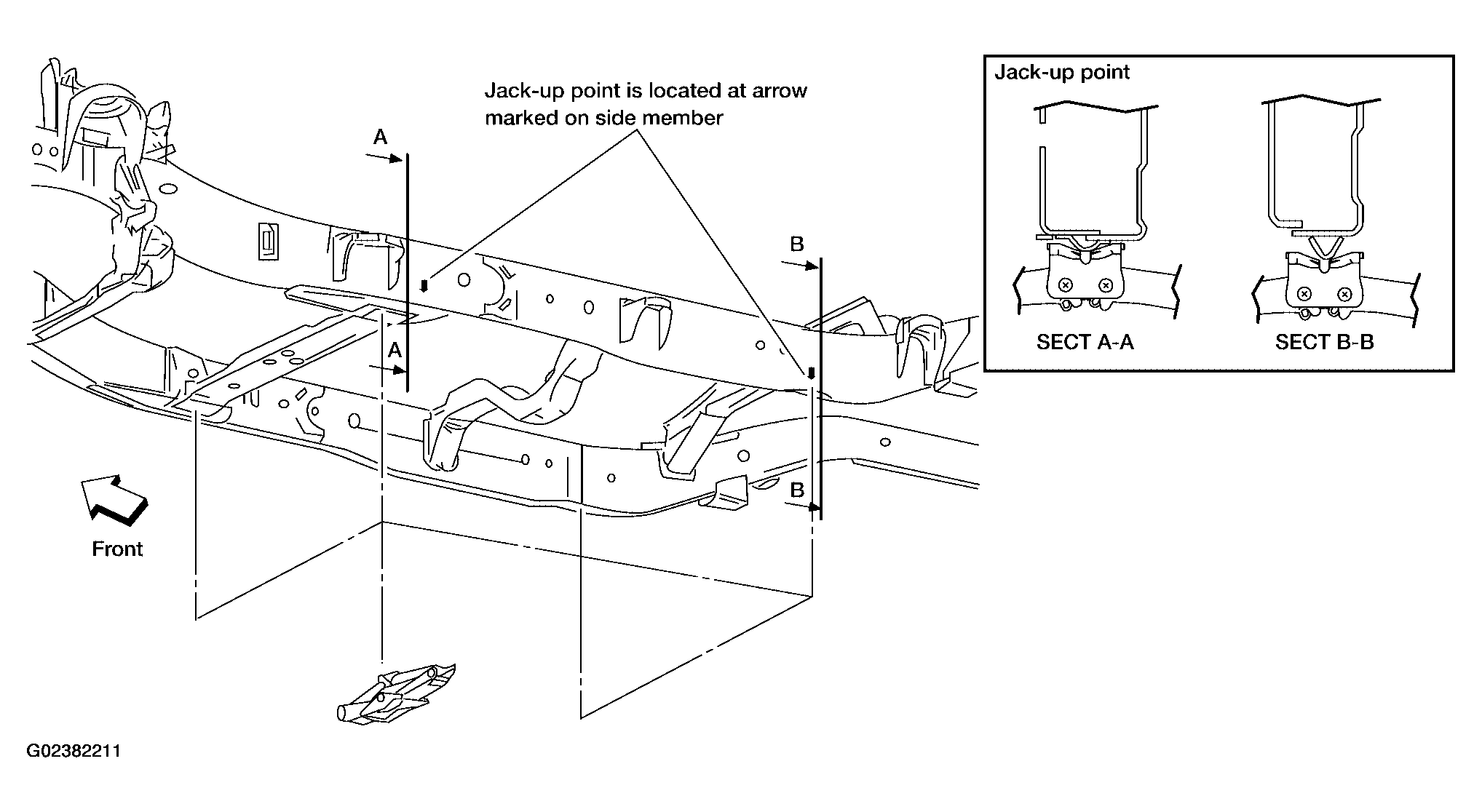

    Fig 1: Lifting Point - Pantograph Jack
    G02382211Courtesy of NISSAN MOTOR CO., U.S.A.
