Garage Jack and Safety Stand

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.

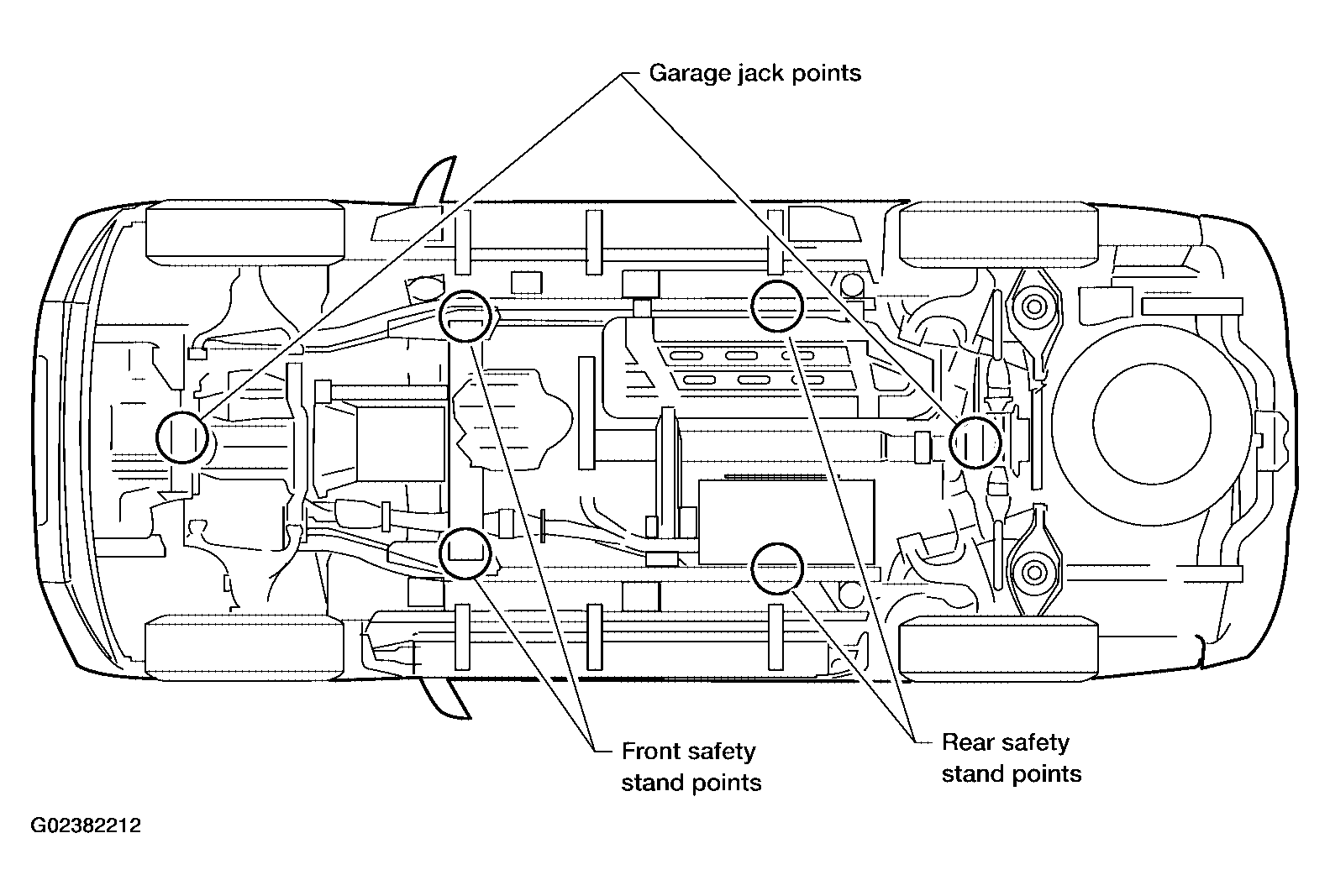

Fig 1: Identifying Garage Jack And Safety Stand Points
G02382212Courtesy of NISSAN MOTOR CO., U.S.A.
