Wiring Diagram - Meter -

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

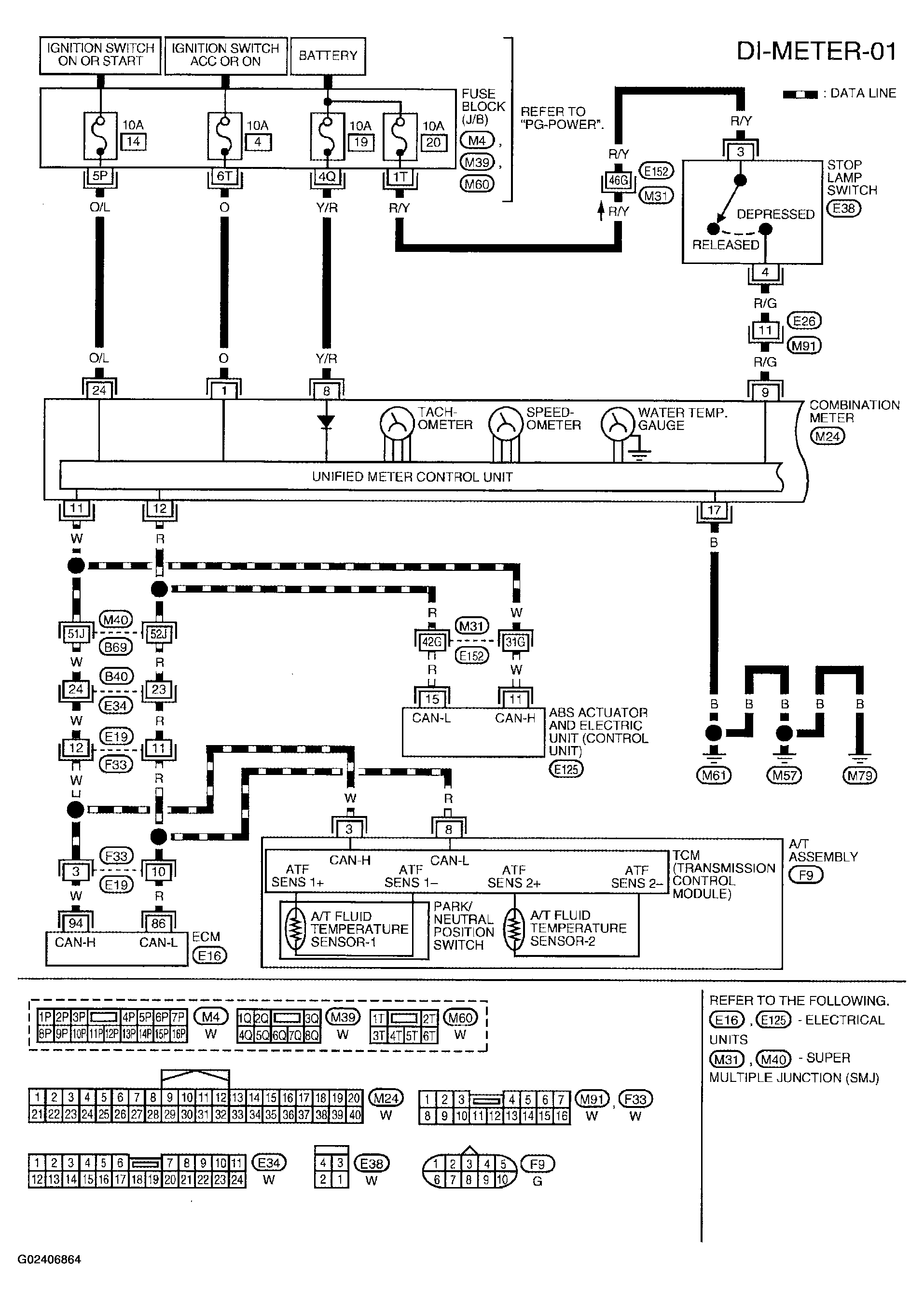

Fig 1: Wiring Diagram - DI-METER-01
G02406864Courtesy of NISSAN MOTOR CO., U.S.A.

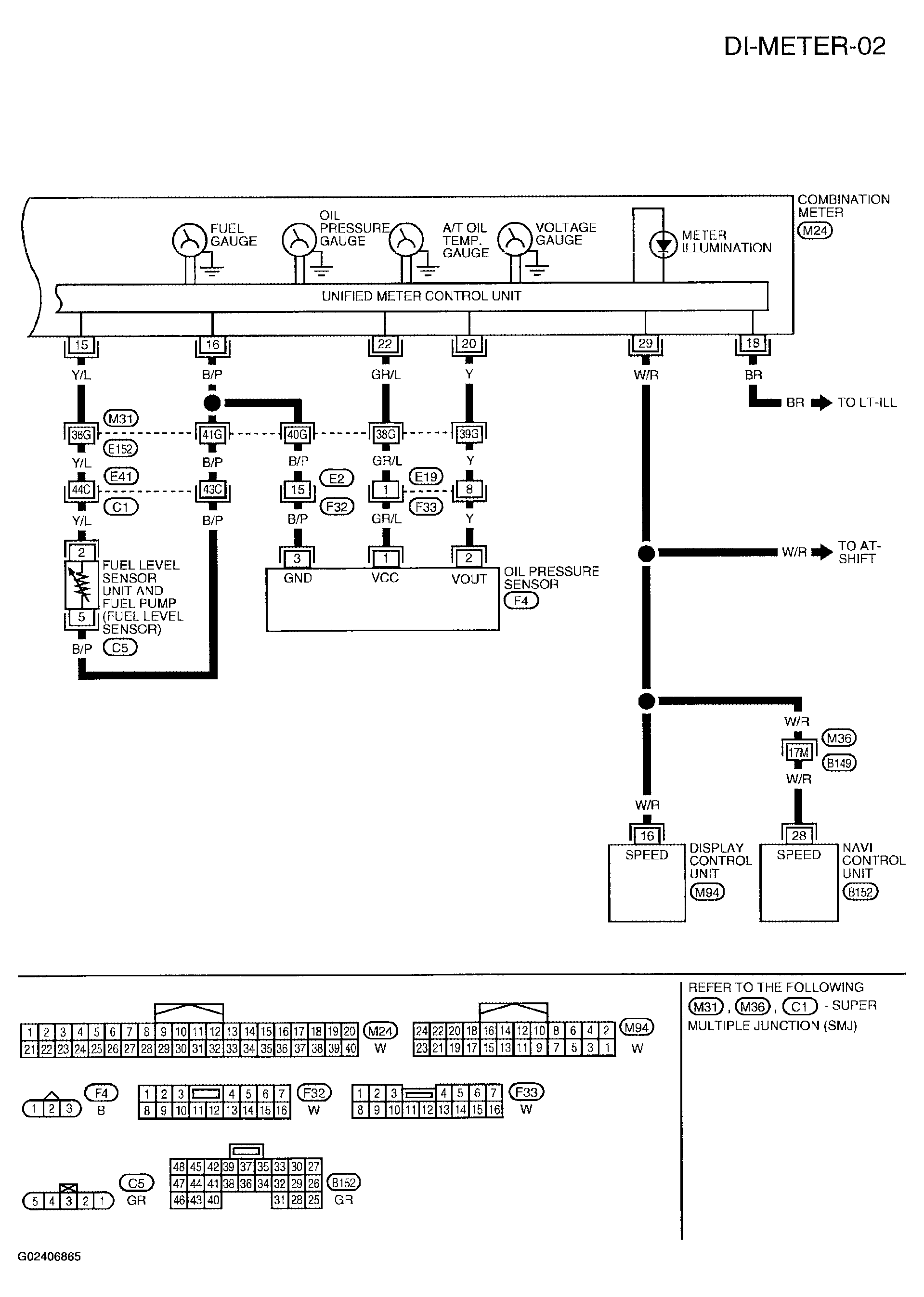

Fig 2: Wiring Diagram - DI-METER-02
G02406865Courtesy of NISSAN MOTOR CO., U.S.A.
