DTC C1101, C1102, C1103, C1104, C1105, C1106, C1107, C1108: Wheel Sensor System Inspection

INSPECTION PROCEDURE

CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector E125 and wheel sensor of malfunctioning code.

Check the terminals for deformation, disconnection, looseness or damage.

OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace as necessary.
CHECK WHEEL SENSOR OUTPUT SIGNAL
1. Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.
2. Turn on the ABS active wheel sensor tester power switch.
  NOTE: The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the battery in the ABS active wheel sensor tester before proceeding.
3. Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel sensor tester. The red SENSOR indicator should flash on and off to indicate an output signal.
  NOTE: If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and retest.
Does the ABS active wheel sensor tester detect a signal?
1. Yes: GO TO 3.
2. No: Replace the wheel sensor. Refer to REMOVAL AND INSTALLATION .
CHECK TIRES
Check for inflation pressure, wear and size of each tire.

Are tire pressure and size correct and is tire wear within specifications?
1. Yes: GO TO 4.
2. No: Adjust tire pressure or replace tire(s).
CHECK WHEEL BEARINGS
Check wheel bearing axial end play. Refer to REMOVAL, OVERHAUL & INSTALLATION or REMOVAL, OVERHAUL & INSTALLATION .

OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace as necessary. Refer to REMOVAL, OVERHAUL & INSTALLATION or REMOVAL, OVERHAUL & INSTALLATION .
CHECK WIRING HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and wheel sensor connector of malfunction code No.
2. Check resistance between wheel sensor harness connector terminals and ground.
  1. Continuity should not exist.
OK or NG
1. OK: GO TO 6.
2. NG: Repair the circuit.

Fig 1: Checking Resistance Between Wheel Sensor Harness Connector Terminals And Ground (For Short Circuit)

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK WIRING HARNESS FOR OPEN CIRCUIT
1. Check continuity between ABS actuator and electric unit (control unit) harness connector E125 and the malfunctioning wheel sensor harness connector E18, E117, C10, or C11.

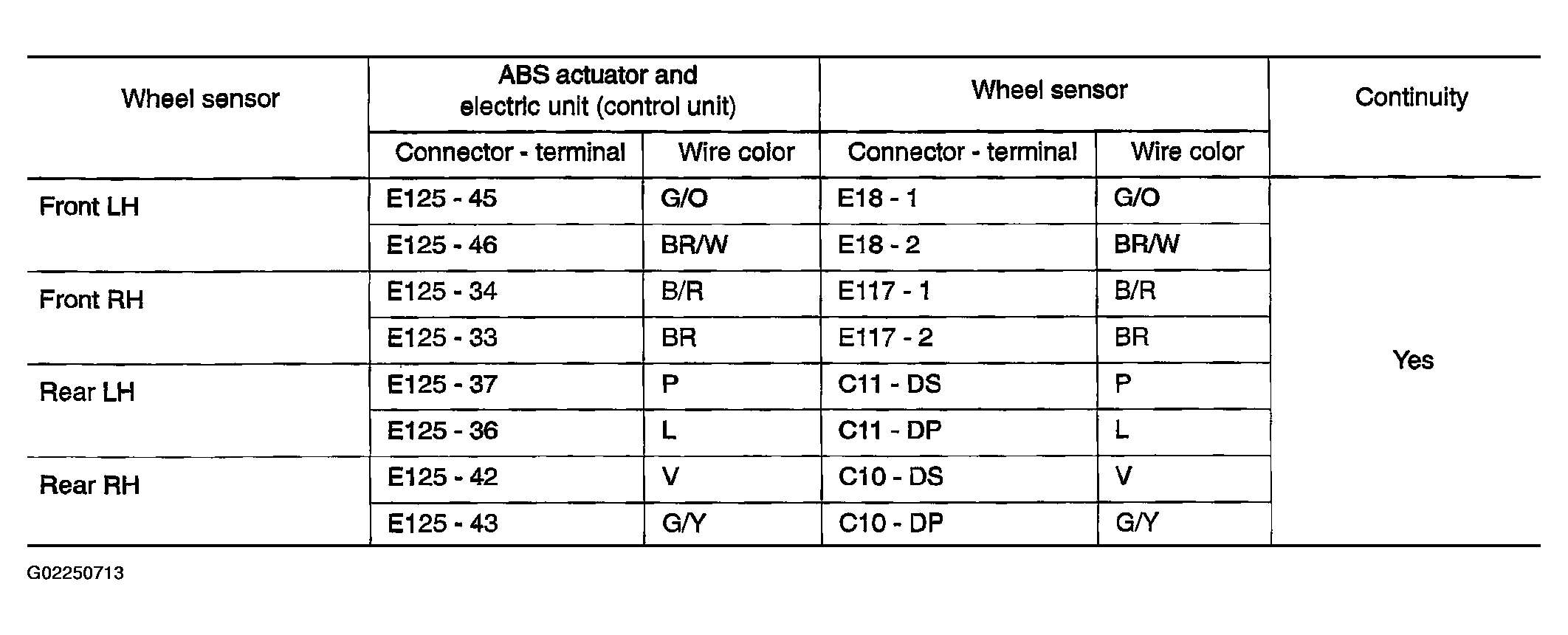

  Fig 2: Checking Continuity Between ABS Actuator And Electric Unit (Control Unit) Harness Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Continuity should exist.
OK or NG
1. OK: Replace the ABS actuator and electric unit (control unit). Refer to REMOVAL AND INSTALLATION .
2. NG: Repair the circuit.
