Wiring Diagram - CLOCK

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION .

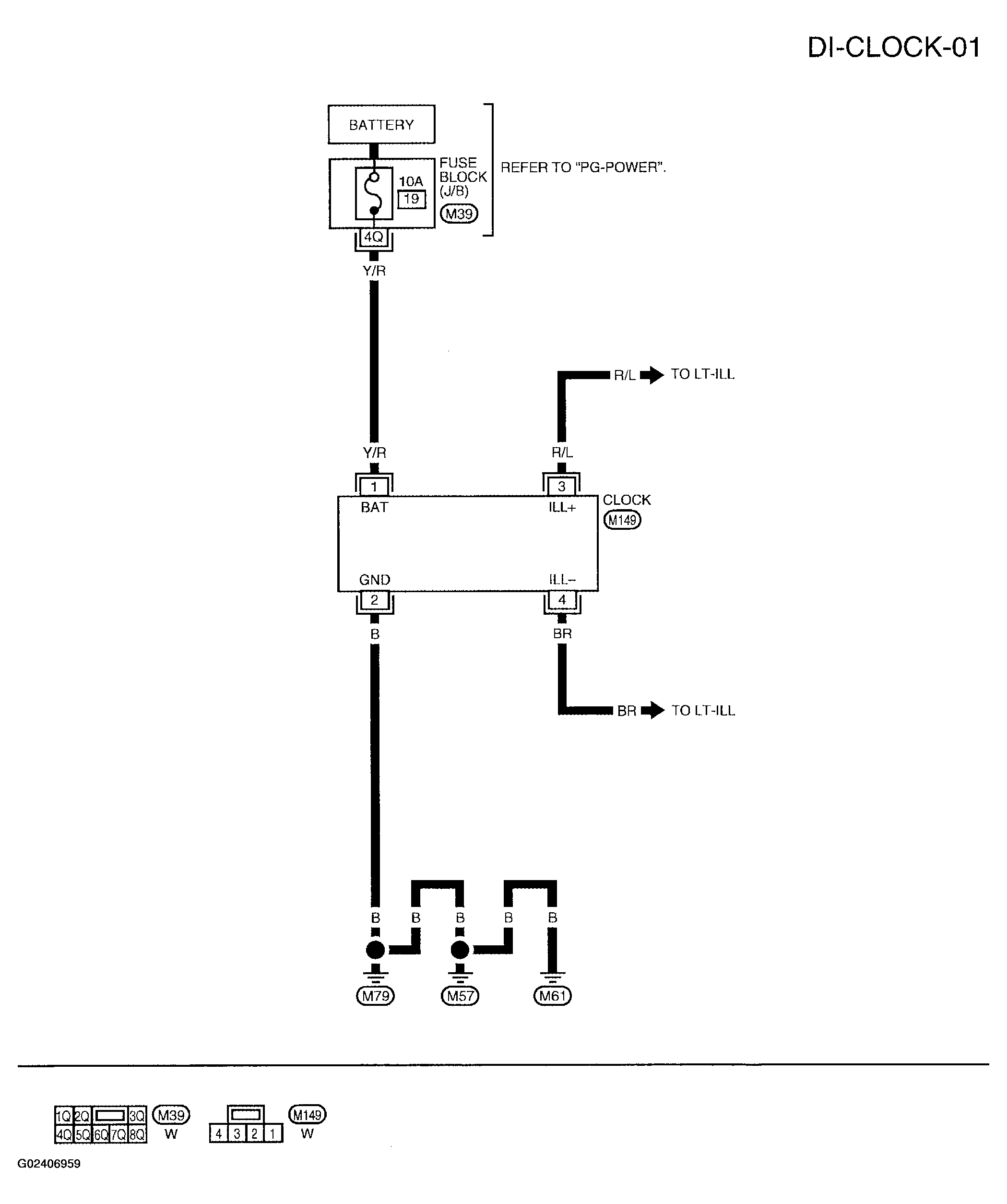

Fig 1: Wiring Diagram - DI-CLOCK-01

G02406959

Courtesy of NISSAN MOTOR CO., U.S.A.
