NVIS (NISSAN Vehicle Immobilizer SYSTEMNATS)
>>
IVIS (INFINITI Vehicle Immobilizer System-NATS)
>>
Wiring Diagram - NATS -
Wiring Diagram - NATS -
NOTE:
For references to PG-POWER, see
POWER DISTRIBUTION
.

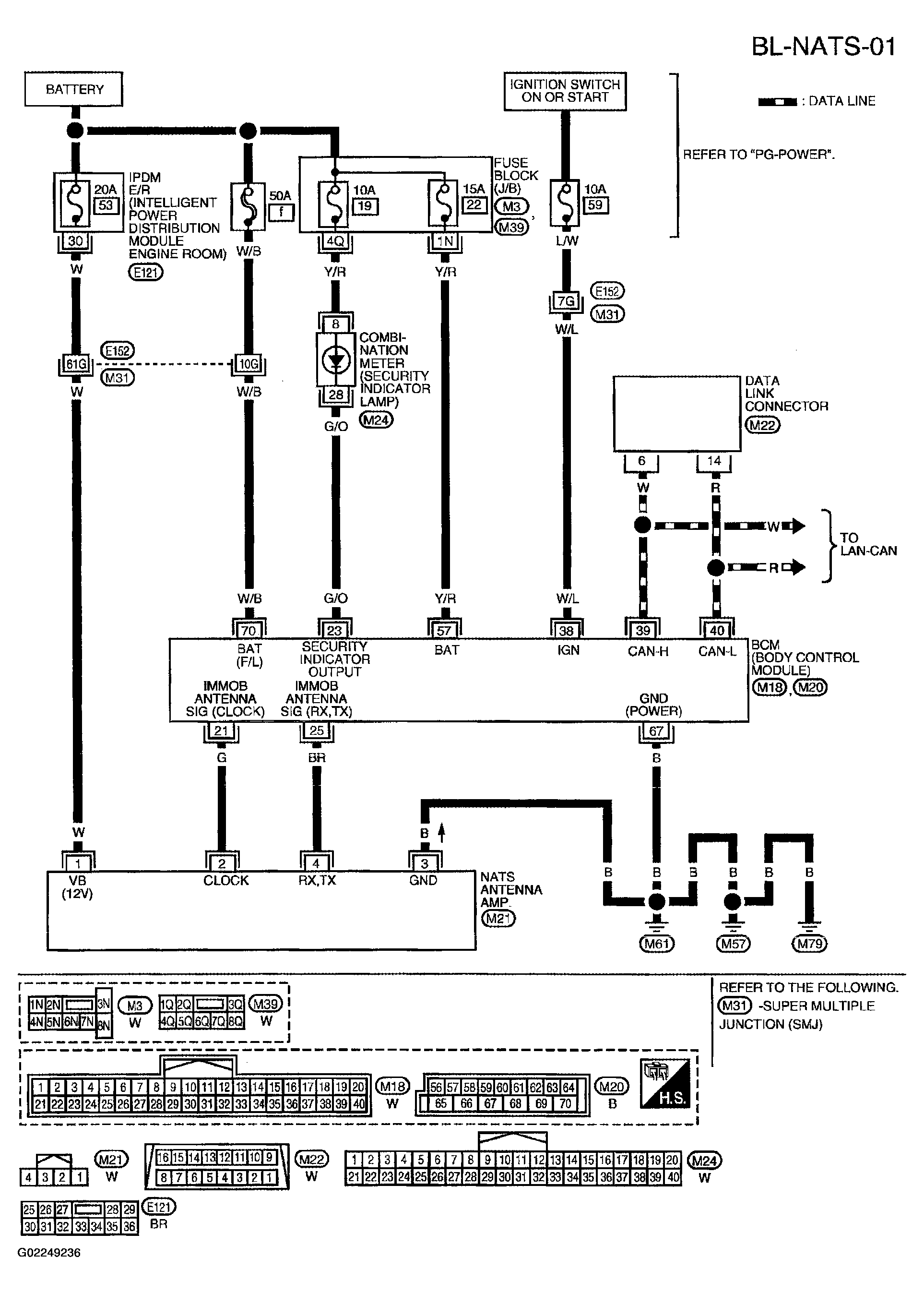

Fig 1: Wiring Diagram - BL-NATS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
