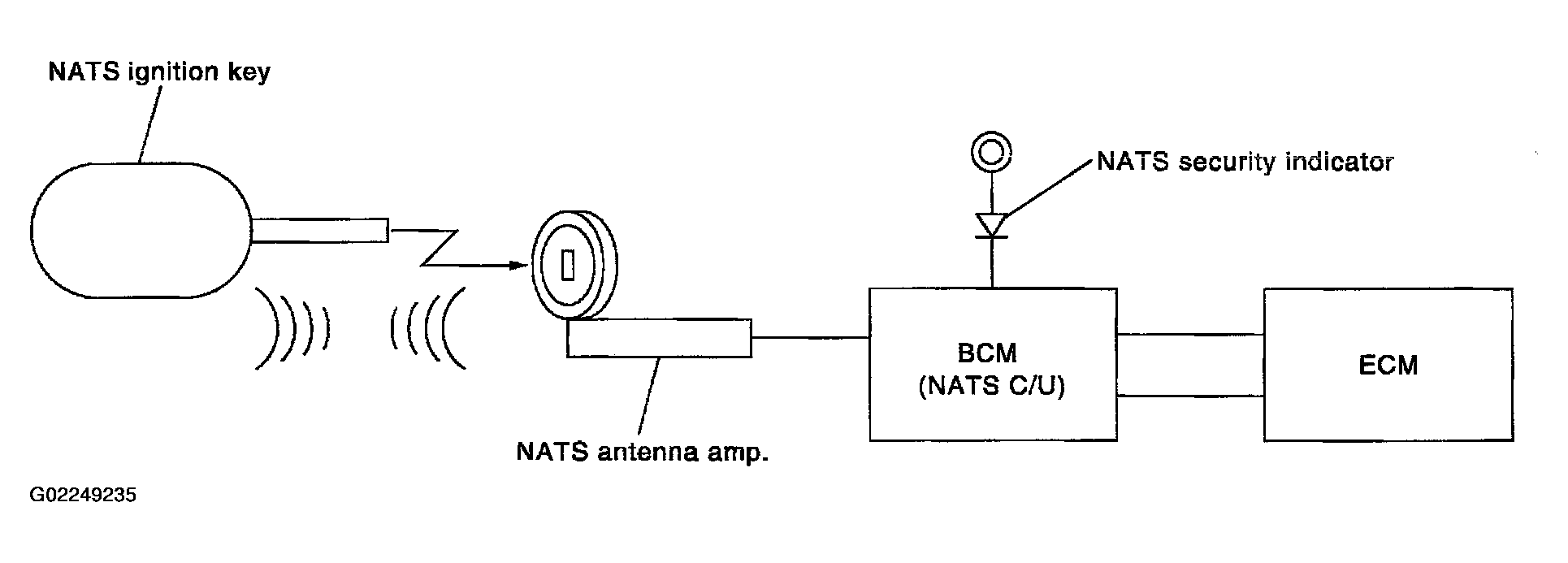

System Composition
The immobilizer function of the IVIS (NATS) consists of the following:
- NATS ignition key
- NATS antenna amp. located in the ignition key cylinder
- Body control module (BCM)
- Engine control module (ECM)
- Security indicator
NOTE:
The communication between ECM and BCM uses the CAN communication system.
