Diagnostic Procedure 2

Self-diagnostic results:

"DIFFERENCE OF KEY" displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS "DIFFERENCE OF KEY" displayed on CONSULT-II screen.

   Fig 1: Identifying CONSULT-II Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is CONSULT-II screen displayed as above?

   1. Yes: GO TO 2.
   2. No: GO TO SYMPTOM MATRIX CHART 1  .
2. PERFORM INITIALIZATION WITH CONSULT-II

   Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.

   For initialization and registration of NATS ignition key IDs, refer to "CONSULT-II Operation Manual NATS-IVIS/NVIS".

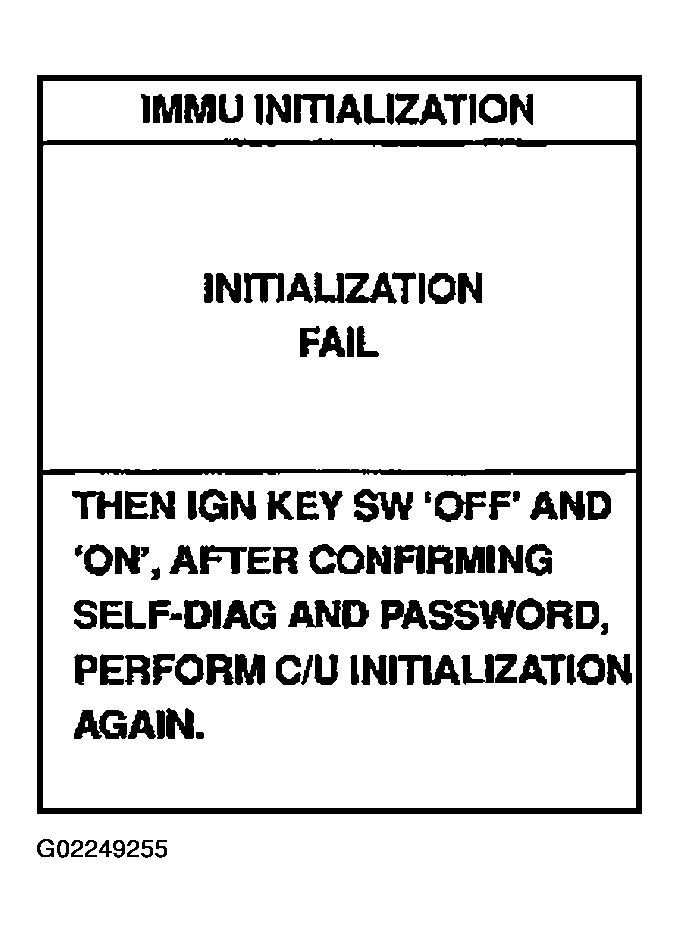

   Fig 2: Identifying CONSULT-II Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
   NOTE: If the initialization is not completed or malfunctions, CONSULT-II shows message on the screen.

   Can the system be initialized and can the engine be started with re-registered NATS ignition key?

   1. Yes: Ignition key ID was unregistered. Ref. part No. D
   2. No: BCM is malfunctioning.
      • Replace BCM. Ref. part No. A
      • Perform initialization with CONSULT-II.
      • For initialization, refer to "CONSULT-II Operation Manual NATS-IVIS/NVIS".
