Instrument Lower Cover LH

Remove screws using power tool, and remove instrument lower cover LH.

• Pull to disconnect clips.
• Disconnect harnesses from back of instrument lower cover LH.

Installation is in the reverse order of removal.

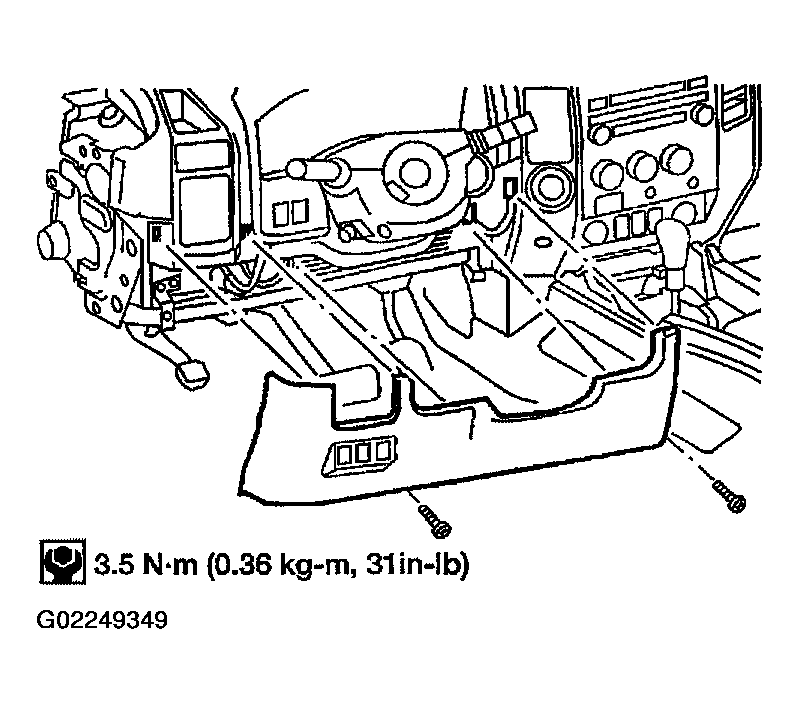

Fig 1: Identifying Instrument Lower Cover LH

Courtesy of NISSAN MOTOR CO., U.S.A.
