Removal and Installation

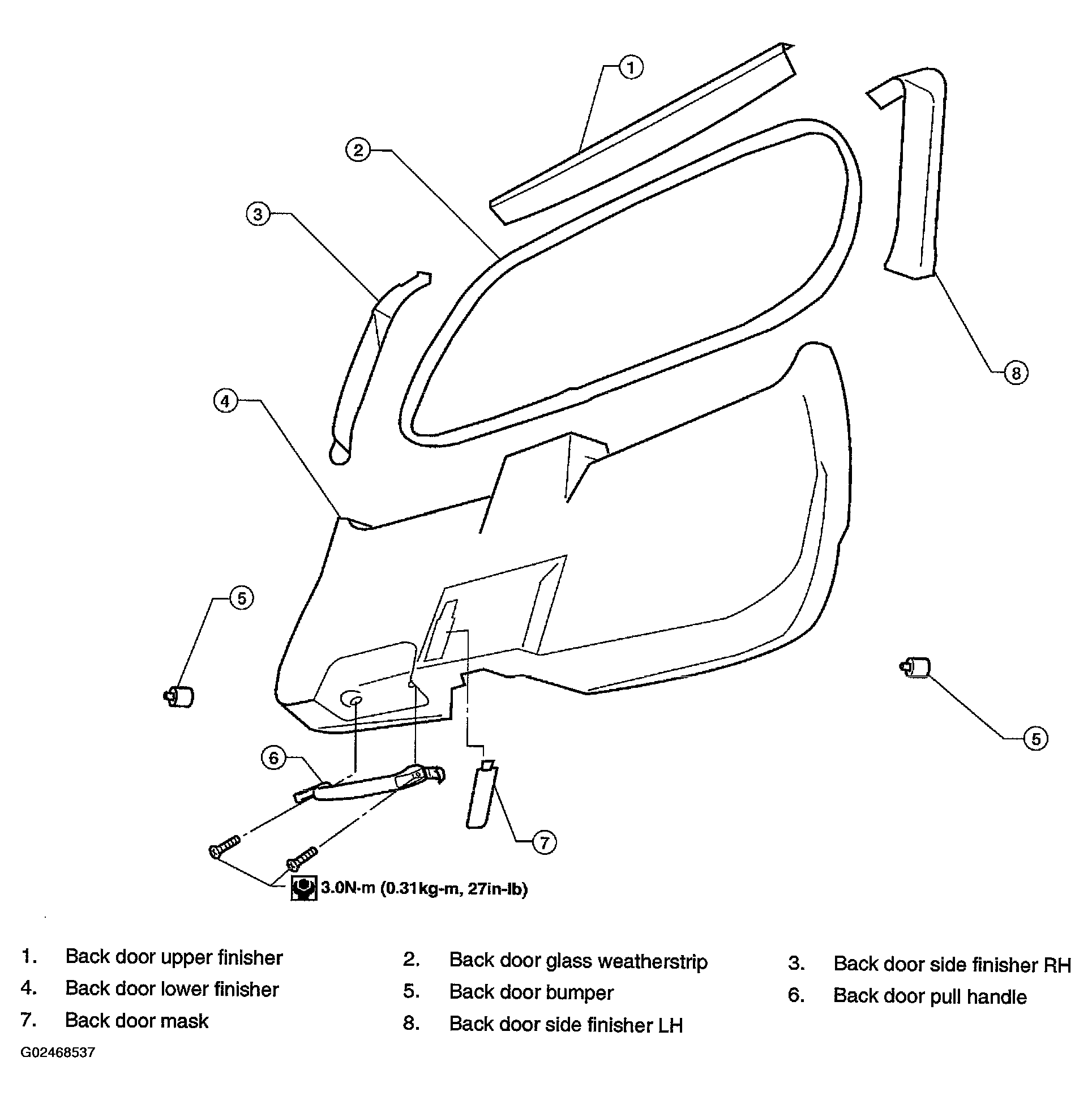

Fig 1: Exploded View Of Back Door Trim

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect door open/close link. Refer to BACK DOOR .
2. Open back door glass.
3. Remove inside weatherstrip around back door glass.
4. Remove assist handle.
5. Release clips and remove back door lower finisher.
6. Release clips and remove back door upper finisher.
7. Release clips and remove back door side finishers LH and RH.

Installation is in the reverse order of removal.
