Gauges & Instrument Panels
>>
Compass & Thermometer
>>
Compass And Thermometer
>>
Wiring Diagram - COMPASS
Wiring Diagram - COMPASS
NOTE:
For references to PG-POWER, see
POWER DISTRIBUTION
.

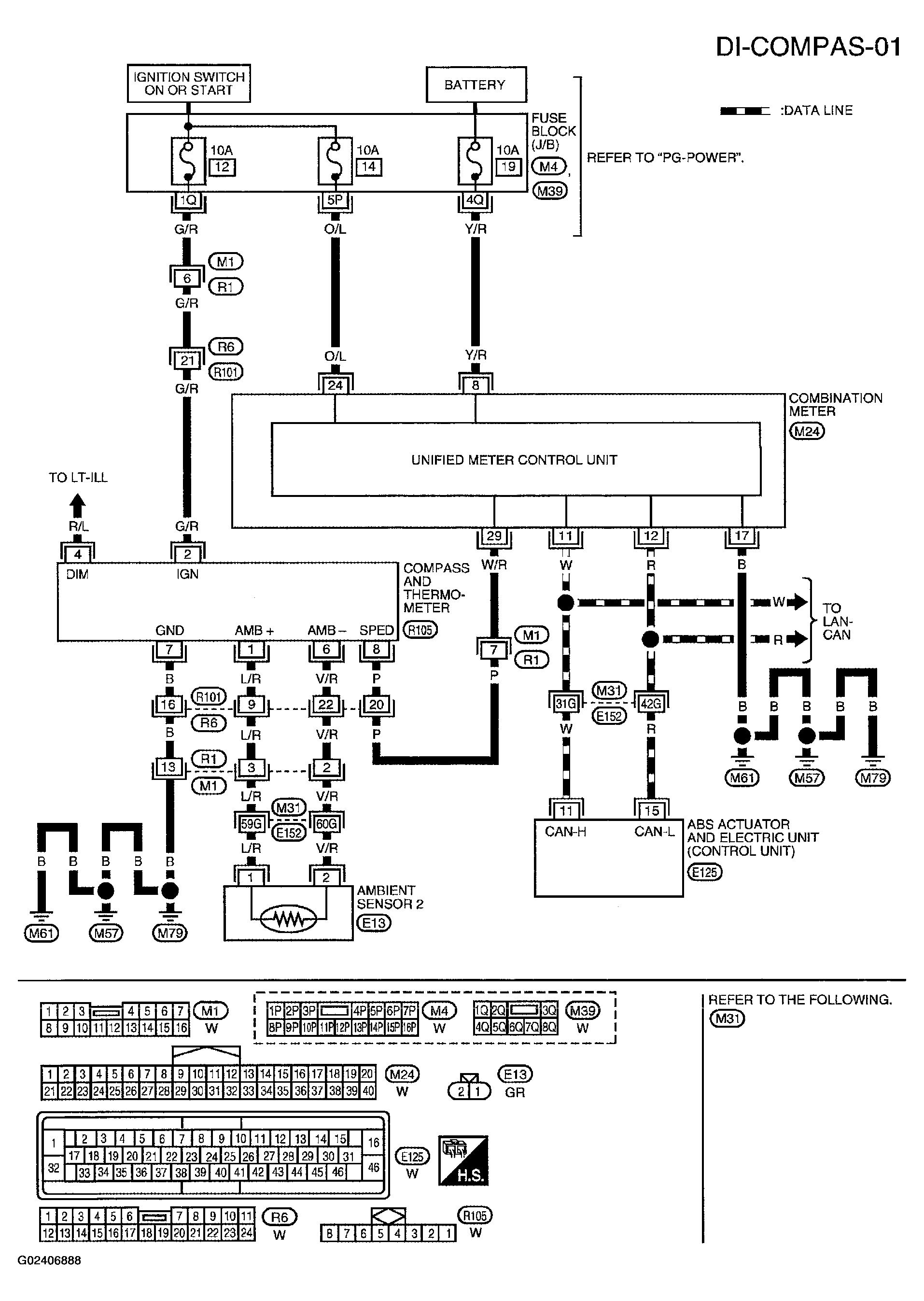

Fig 1: Wiring Diagram - DI-COMPAS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
