Wiring Diagram - TURN -

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

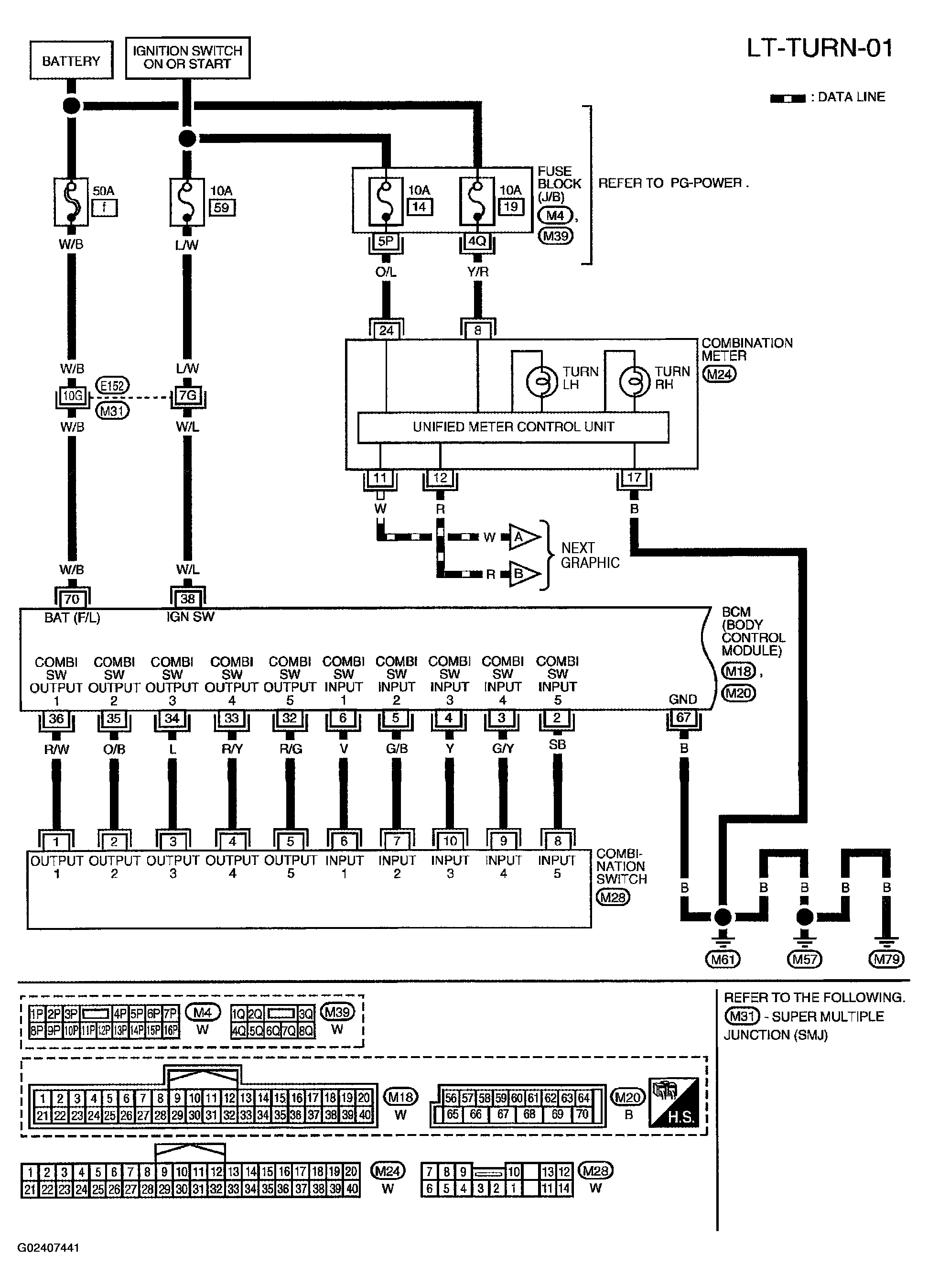

Fig 1: Wiring Diagram - LT-TURN-01
G02407441Courtesy of NISSAN MOTOR CO., U.S.A.

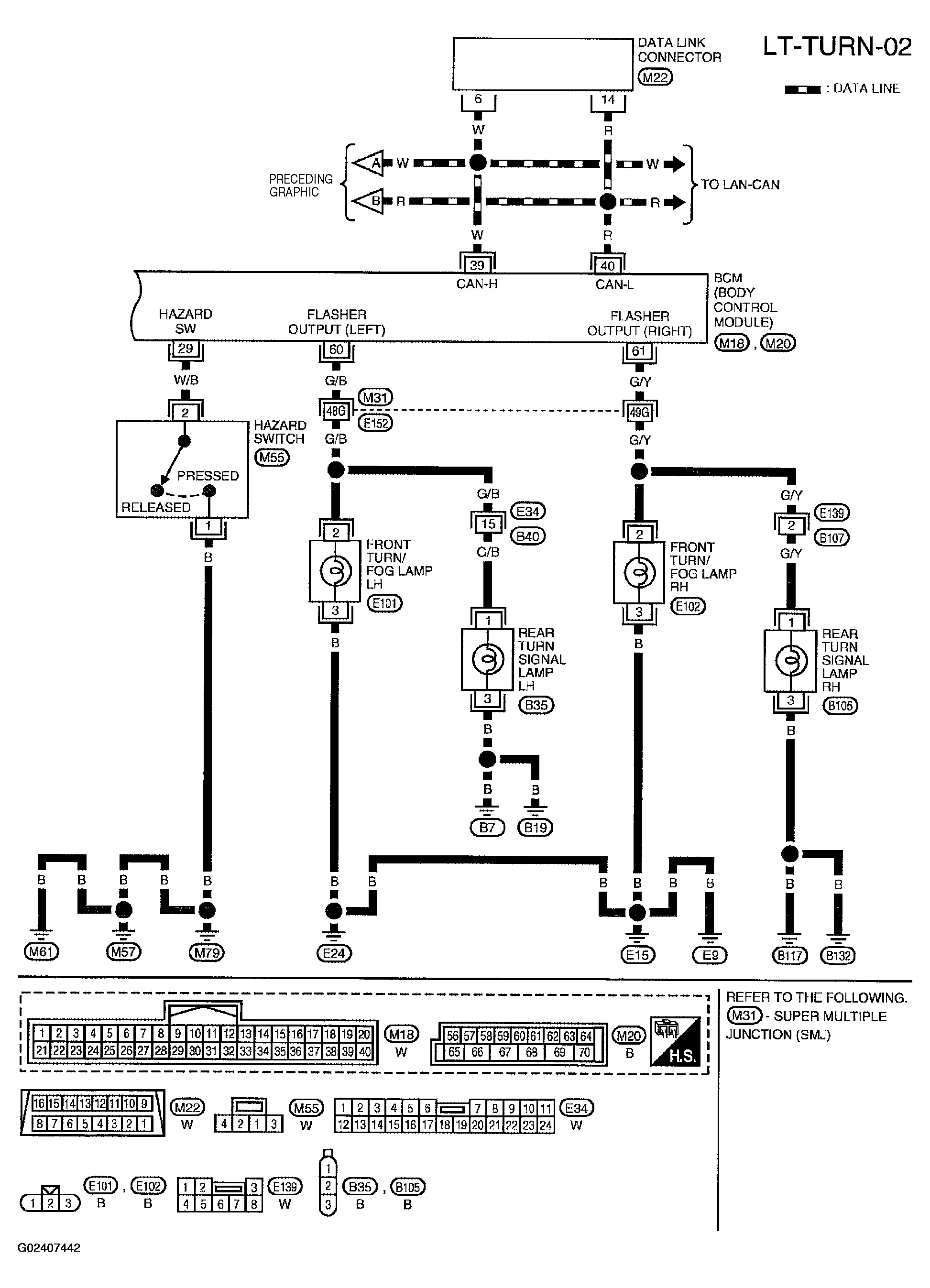

Fig 2: Wiring Diagram - LT-TURN-02
G02407442Courtesy of NISSAN MOTOR CO., U.S.A.
