CONSULT-II Basic Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.
    Fig 1: Connecting CONSULT-II And CONSULT-II CONVERTER To Data Link Connector
    G02407451Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G02407452Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

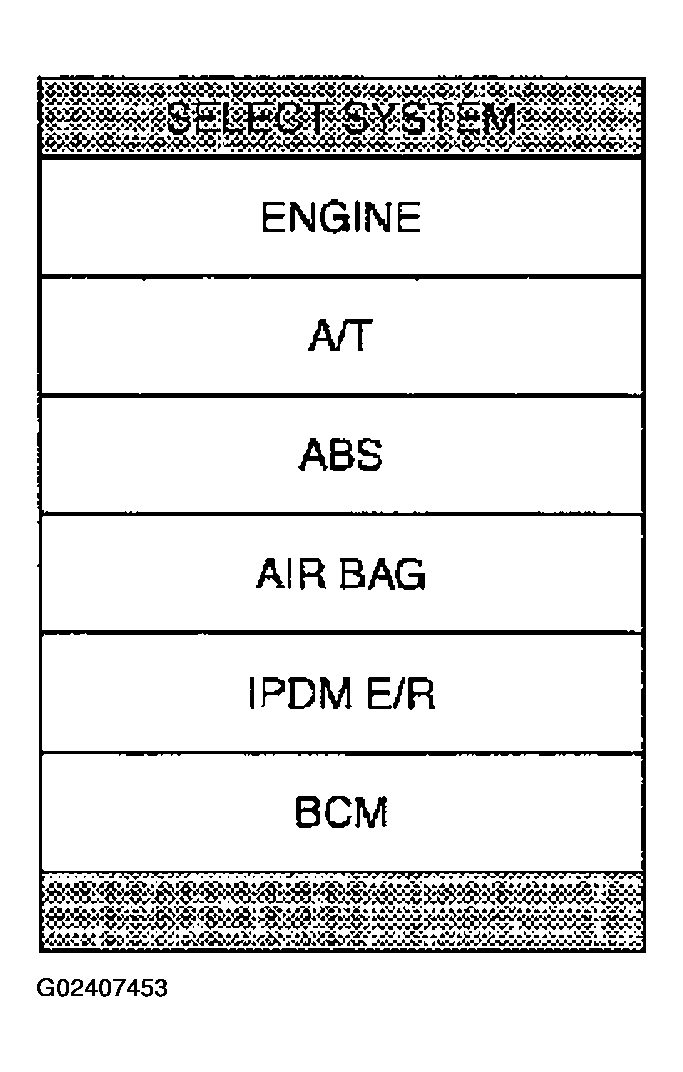

    Fig 3: CONSULT-II Display - SELECT SYSTEM
    G02407453Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "FLASHER" on "SELECT TEST ITEM" screen.
    Fig 4: CONSULT-II Display - SELECT TEST ITEM
    G02407454Courtesy of NISSAN MOTOR CO., U.S.A.
