Parking, License Plate And Tail Lamps
>>
Terminals And Reference Values For IPDM E/R
Terminals And Reference Values For IPDM E/R

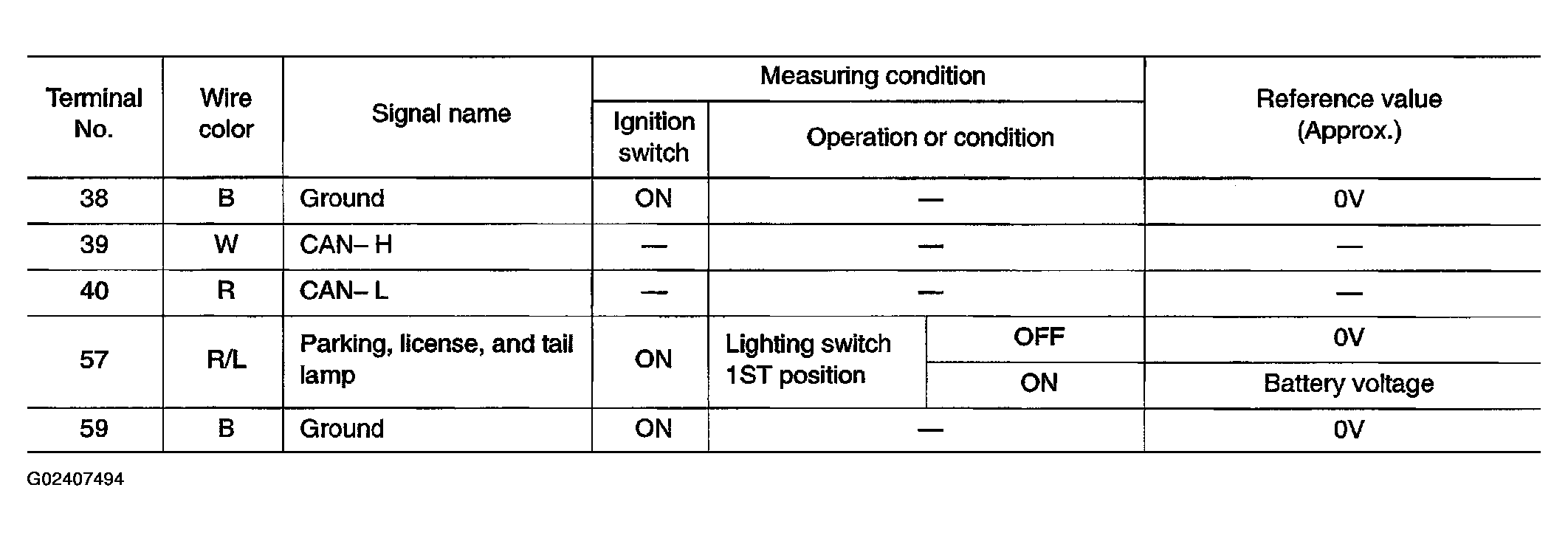

Fig 1: Terminals & Reference Values Chart For IPDM E/R
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
