Parking, License Plate And Tail Lamps: Schematic

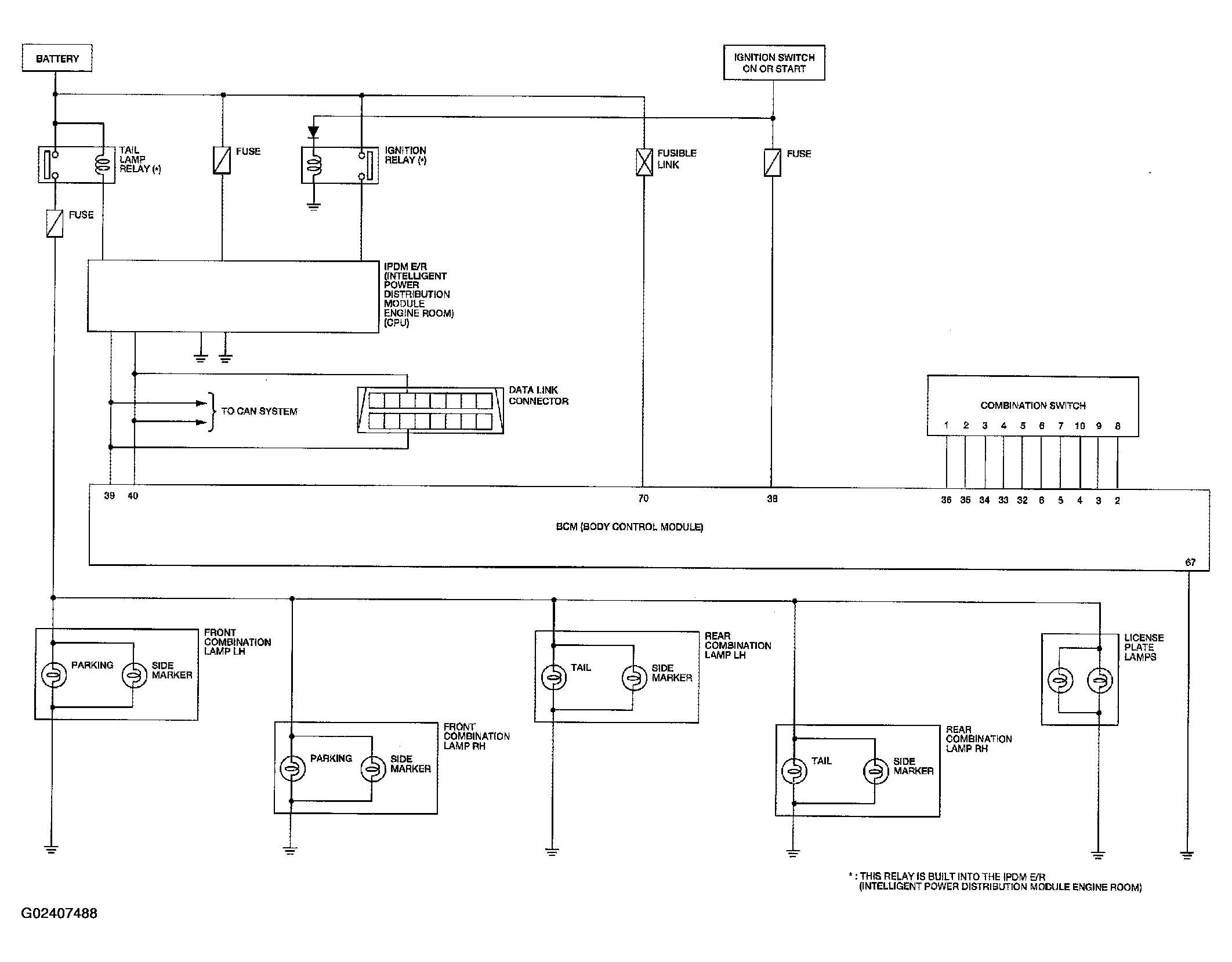

Fig 1: Parking, License Plate And Tail Lamps Schematic

G02407488

Courtesy of NISSAN MOTOR CO., U.S.A.
